CFB030-40-080M-R60 - Datasheet
MBA
Category Information

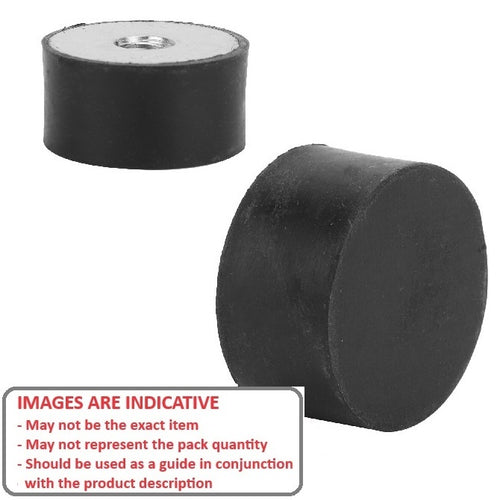

Mounts - Buffer - FemaleFemale Buffer Mounts. Vibration dampening
- An expanded range may be available on special order. Please enquire.
- Also see Bumpers

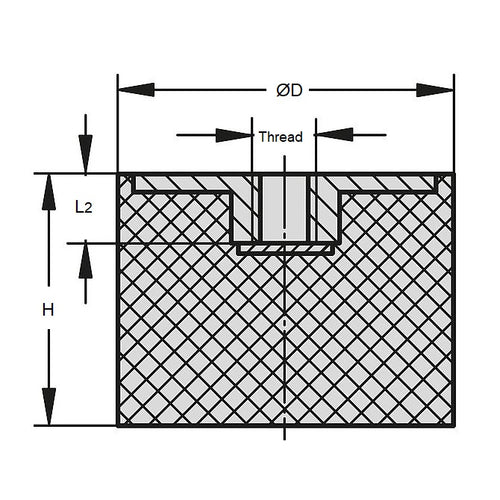

Product Data
- Nom. Body Diameter (D) : 30.0 mm
- Body Height (H) 40.0 mm
- Thread Size M8x1.25
- Shore Hardness 60
- Compression Load 80 Kg (lbs)
- Deflection 10.0 mm
- Configuration Female to Blank
- Material Natural Rubber
Product Compliance and Data
Additional Resources
Cross References
- 3040FFB0860
- 3040FFB08-60
