CHE-107RS - Datasheet
MBA
Category Information

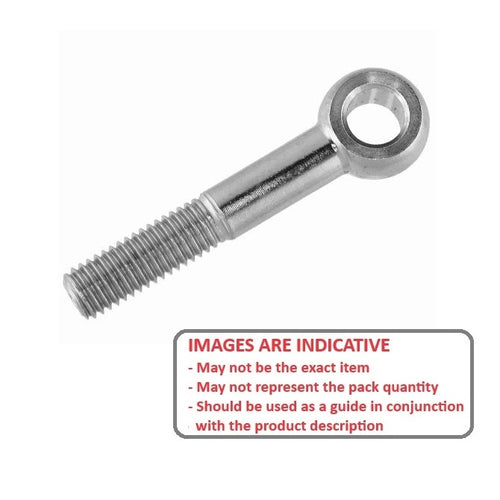

Eye Bolts - Partial Threaded Shank - Plain - Stainless SteelStainless Steel Plain Partial Threaded Shank Eye Bolts. 316 Stainless Steel
- Fastener with a loop or eye at one end, and a partial threaded shank on the other.
- Used to attach ropes or cables to secure or lift objects by screwing the threaded end into a structure, with the loop providing an anchor point.
- Regular eye bolts for vertical lifting and shoulder eye bolts that can handle angled loads.
- Any deviations such as angular lifts, shock loads, modifications of the basic forging etc will result in drastically reduced maximum loads.
Product Data

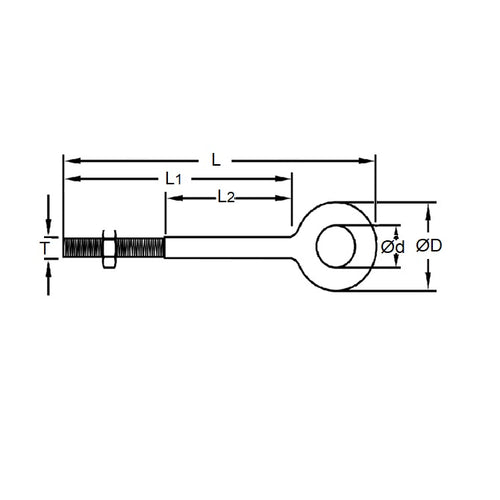

- Thread Size : 3/8-16 UNC (9.53mm)
- Shank Length
63.500
mm
(Equiv. 2.5 in.) - Eye Inside Diameter
19.050
mm
(Equiv. 0.75 in.) - Rated Capacity 544 Kg
