FP-50SSRS - Datasheet

MBA

Category Information

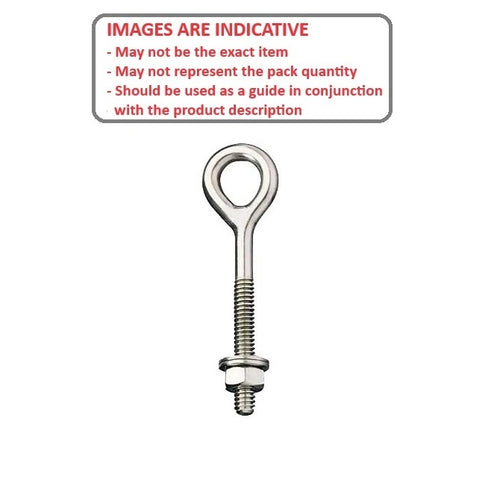

Eye Bolts - Threaded Shank - Plain - Stainless Steel

Stainless Steel Plain Threaded Shank Eye Bolts. 304 Stainless Steel

  • Fastener with a loop or eye at one end, and a fully threaded shank on the other.
  • Used to attach ropes or cables to secure or lift objects by screwing the threaded end into a structure, with the loop providing an anchor point.
  • Regular eye bolts for vertical lifting and shoulder eye bolts that can handle angled loads.
  • Should not be used for angular lifts greater than 45o. Safety swivel hoist rings are recommended for such applications.

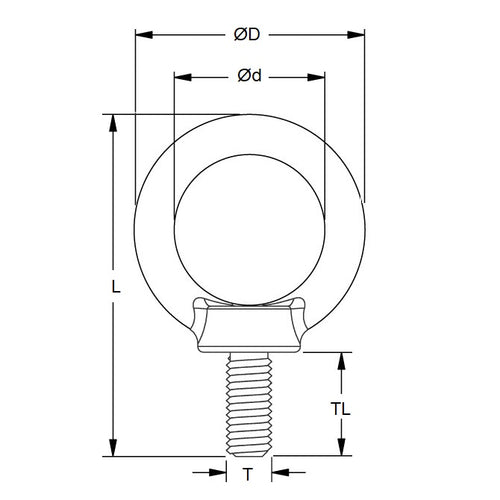

Product Data

  • Thread Size : 3/8-16 UNC (9.53mm)
  • Shank Length 31.750 mm
    (Equiv. 1.25 in.)
  • Eye Inside Diameter 25.400 mm
    (Equiv. 1 in.)
  • Thread Length 31.750 mm
  • Rated Capacity 526 Kg
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 33045T79
