IN-TP-095C-16-WSS - Datasheet

MBA

Category Information

Inserts - Self Tapping - For Wood - Slotted Drive - Short

Short Slotted Drive For Wood Self Tapping Inserts. Threaded inserts are screwed into pre-formed or pre-drilled holes and cut their own threads. Perfect for permanent installations.

  • Made from brass
  • Install with a screwdriver
  • Superior holding power in hard and soft woods, particle board and other wood products. Long pilot assists with straight driving into a drilled hole.

Product Data

  • Internal Thread : 3/8-16 UNC (9.53mm)
  • Rec. Hole Diameter 12.700 mm
    (Equiv. 0.5 in.)
  • Length (L) 15.875 mm
    (Equiv. 0.625 in.)
  • Outside Diameter (B) 15.240 mm
  • Overall Length 15.875
Country of Origin: US

Product Compliance and Data

Additional Resources

View full details

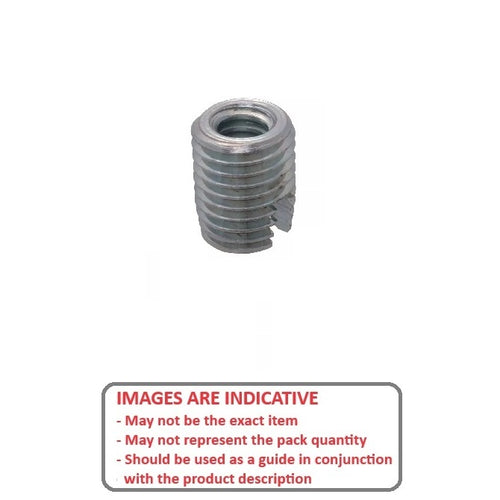

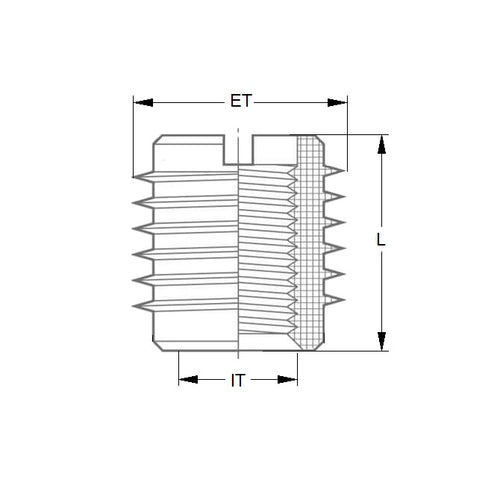

IN-TP-095C-16-WSSDiagramIN-TP-095C-16-WSSImage
