BEB-1630RS - Datasheet
MBA
Category Information

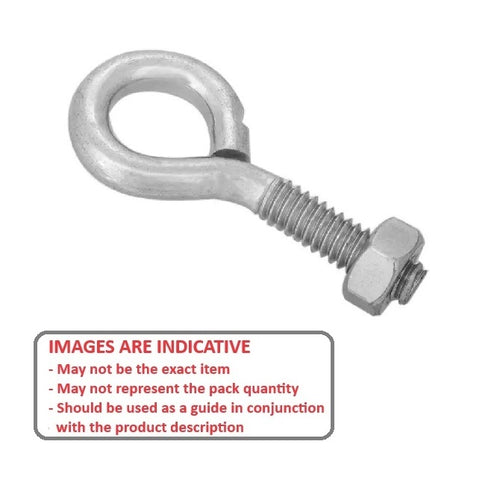

Eye Bolts - Bent - Stainless SteelStainless Steel Bent Eye Bolts. Not recommended for lifting. 304 stainless steel.
- Fastener with a loop or eye at one end, and a threaded shank on the other.
- Used to attach ropes or cables to secure objects by screwing the threaded end into a structure, with the loop providing an anchor point.
- Complete with nut.
- Rolled threads.

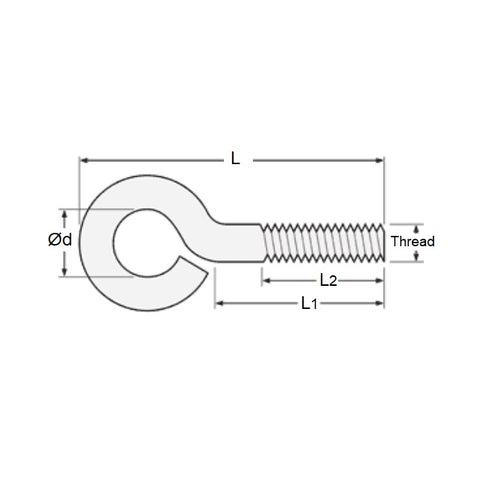

Product Data
- Thread : 3/8-16 UNC (9.53mm)
- Overall Length
139.700
mm
(Equiv. 5.5 in.) - Shank Length
101.600
mm
(Equiv. 4 in.) - Thread Length 63.500 mm
- Eye Inside Diameter 19.050 mm
Product Compliance and Data
Additional Resources
Cross References
- 9489T75
