Miniature Bearings Australia
SFR144A-D27-ZSO-TO - Datasheet
Myonic
Category Information
Bearings - Dental ApplicationsDental Applications Bearings. This listing shows the basic features of various bearings for dental applications.
- Bearings used in high-speed and low-speed dental handpieces play a crucial role in the performance and reliability of these dental tools.
- The purpose of bearings in dental handpieces varies depending on the speed requirements and operational characteristics of the handpiece.
- Key features of dental equipment bearings are high precision allowing for high speed rotaion, low friction and quiet operation. An expanded range may be available on special order. Please enquire.
- Please contact us for a dental application list.
Product Data

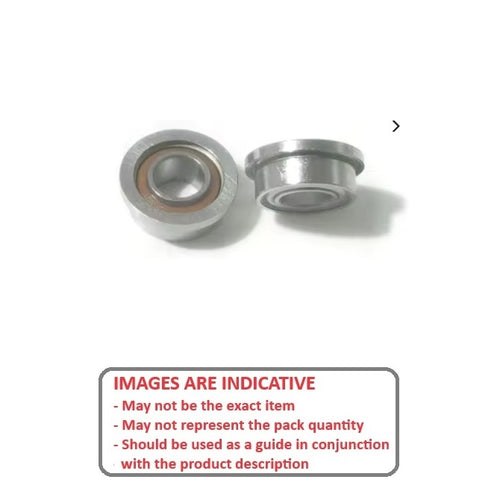

Precision flanged dental bearing with a high speed polyamide retainer

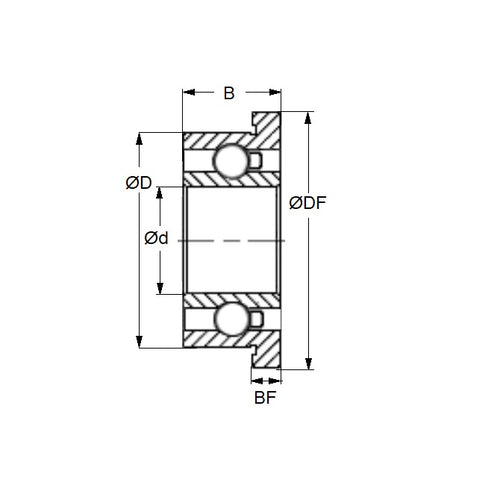

- ID (d)
:
3.175
mm
+ 0.000 / - 0.004
(Equiv. 0.125 in.) - O.D. (D)
6.350
mm
+ 0.000 / - 0.005
(Equiv. 0.25 in.) - Width (B)
2.779
mm
+ 0.000 / - 0.040
(Equiv. 0.109 in.) - Flange Diameter (DF) 7.518 mm
- Flange Width (BF) 0.787
- Precision Grade Abec 7 - Optimyn Germany Dental Special
- Closure Type ZS
- Bearing Type D27 Flanged Dental Special
- Lubricant Oil - Special
- Material Stainless Steel AISI 440C - High Speed Polyamide Cage
- Lubrication Type Oil
- Lubrication Name Undisclosed
- Basic Part FR144A
- Limiting Speed 156000
- Cage Type Torlon
- Static Load Rating KGf 10
- Dynamic Load Rating KGf 29
- Radii 0.10 mm
- Inner Shoulder (UI) 3.92mm
- Outer Shoulder (UO) 5.75 mm
- Number of Balls 7
- Clearance Special
- Precision Grade Abec 7
- Closure Type ZSO
- Max Temperature 140 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- Dental Handpiece Parts
- ABU® - 350000 RPM - Bearing - Alternative Options
- ADEC® - 5000 - Bearing - Alternative Options
- ADEC® - 5100 - Bearing - Alternative Options
- Dabi Atlante® - RS350 - Bearing - Alternative Options
- DME - Aden - Bearing - Alternative Options
- DME - True Speed - Bearing - Alternative Options
- Faro® - BTC77 - Bearing - Alternative Options
- Impact-Air® - High Speed Handpiece - Bearing - Alternative Options
- Midwest® - 400 - Bearing
- Midwest® - 400 - Bearing for Chuck End - Alternative Options
- Midwest® - Quiet Air - Bearing for Chuck End - Alternative Options
- Midwest® - Quiet Air Compact - Bearing for Chuck End - Alternative Options
- Midwest® - Tradition - Bearing - Alternative Options
- Midwest® - Tru-Line - Bearing for Chuck End - Alternative Options
- NSK® - Alpha Air - Bearing
- NSK® - Alpha Light - Bearing
- NSK® - Alpha Light - Bearing for Rotor Cartridge - Alternative Options
- NSK® - NTF TU03 - Bearing - Alternative Options
- NSK® - Optica - Bearing for Chuck End - Alternative Options
- NSK® - Pana Air Mini MU03 Red Band - Bearing for Chuck End - Alternative Options
- NSK® - Phatelus - Bearing for Rotor Cartridge - Alternative Options
- NSK® - Phatelus II - Bearing for Cap End - Alternative Options
- NSK® - Phatelus III - Bearing for Cap End - Alternative Options
- NSK® - Phatelus MU03 - Bearing - Alternative Options
- NSK® - Phatelus SU03 - Bearing - Alternative Options
- NSK® - Phatelus TU03 - Bearing - Alternative Options
- NSK® - Vip-Air - Bearing - Alternative Options
- SS White® - SS White - Bearing for Cap End - Alternative Options
Cross References
- KaVo® 9A0050-832
- RMB® OPTIMYN-418WIF-PAI-Single
- Generic Dental SG1376XST
- KaVo® SG1376XST
- 9A0050832
- SSFR144AD27T9HZSOOPT
- OPTIMYN-418-WIF-PAI
- OPTIMYN418WIFPAISingle
- SFR144AD27ZSOT9HOPT
