W0035-LI-007-005-S4 - Datasheet

MBA

Category Information

Washers - Lock - Internal Tooth - Stainless Steel

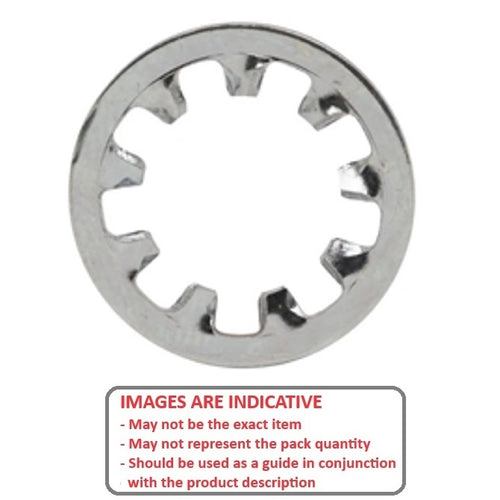

Stainless Steel Internal Tooth Lock Washers. Stainless steel, internal toothed selection.

  • Lock washers are available in many different materials and types, including tabbed, split and toothed. An expanded range may be available on special order. Please enquire.
  • Designed to prevent nuts and bolts from loosening due to vibration or torque by creating tension and friction within the bolted joint, effectively securing the connection and preventing unwanted rotations.
  • Dimensions are nominal and may vary between batches.
  • These are not the same as push on retaining rings. This product is not designed to grip a shaft. Search for push on retaining rings if that is what you require.

Product Data

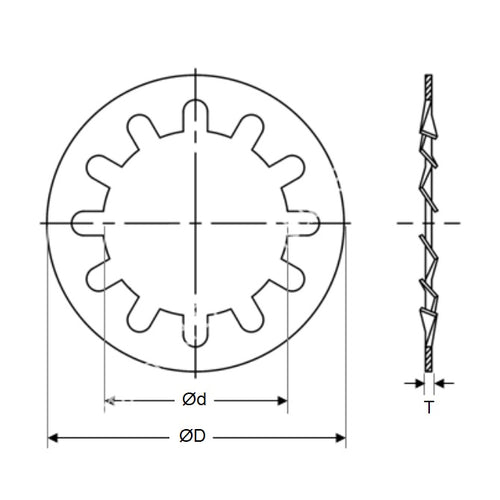

  • Nominal Inside Diameter : 3.50 mm
  • Outside Diameter 7.1 mm +0.000/-0.300
    (Equiv. 0.28 in.)
  • Material Thickness (T) 0.50 mm
  • Nominal Screw Size M3.5, 6-32, 6-40
  • Actual ID (Ref) 3.70 mm
  • Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Country of Origin: AU

Product Compliance and Data

Additional Resources

Cross References

  • 91757A103
  • A9X21-I06
  • A9X21I06
  • A 9X21-I06
