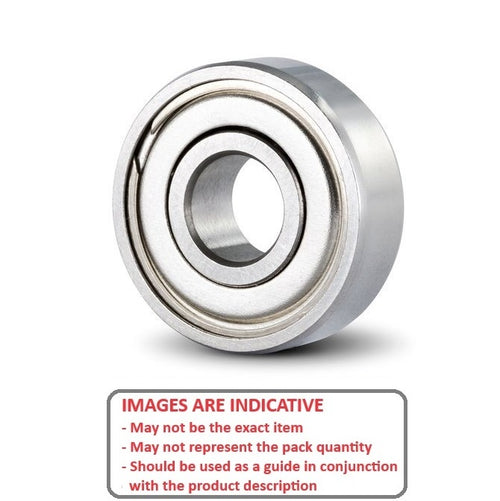

R2-ZZS-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

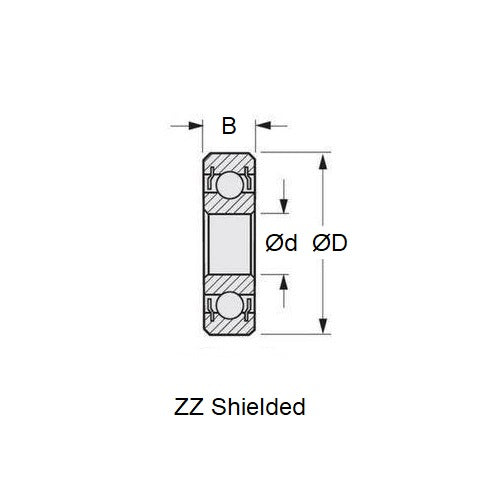

Double shielded economy bearing
- ID (d) : 3.175 mm
- O.D. (D) 9.525 mm
- Width (B) 3.969 mm
- Precision Grade Economy
- Closure Type ZZS
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part R2
- Limiting Speed 53200
- Cage Type Standard
- Static Load Rating KGf 20.9
- Dynamic Load Rating KGf 60.8
- Radii 0.30 mm
- Inner Shoulder (UI) 4.80mm
- Outer Shoulder (UO) 7.98 mm
- Number of Balls 7
- Clearance ECO (5 to 23)
- Precision Grade ECO
- Closure Type ZZS
- Max Temperature 120 Deg. C
