Miniature Bearings Australia
692A-ZZ-MC3 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

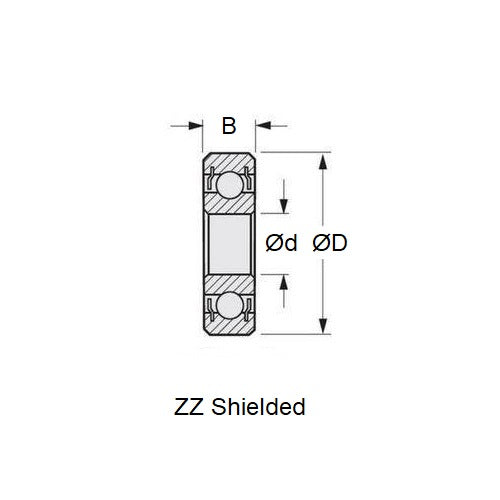

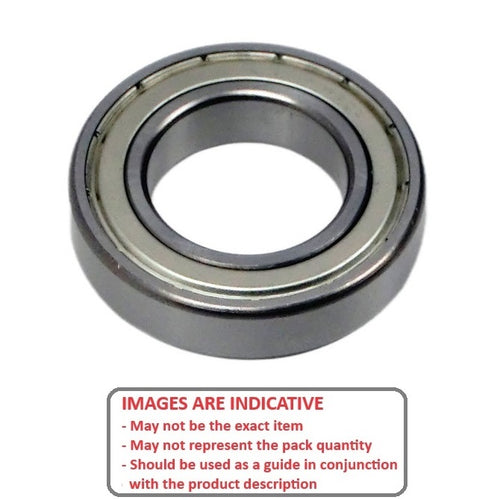

Double shielded standard bearing
- ID (d)
:
2.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.079 in.) - O.D. (D)
6.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.236 in.) - Width (B)
3.000
mm
+ 0.000 / - 0.125
(Equiv. 0.118 in.) - Precision Grade Abec 1
- Closure Type ZZ
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 692A
- Limiting Speed 75000
- Cage Type Crown
- Static Load Rating KGf 10
- Dynamic Load Rating KGf 34
- Radii 0.15 mm
- Inner Shoulder (UI) 3.00mm
- Outer Shoulder (UO) 5.40 mm
- Number of Balls 6
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type ZZ
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Car Parts
- RC Helicopter Parts
- Kyosho® - Baha Bugs - Bearing
- Kyosho® - Mclarin Formula 1 - Bearing
- Tamiya® - Egress - Bearing
- Tamiya® - Porsche 959 - Bearing
- Tamiya® - Porsche 959 Celica - Bearing
- Tamiya® - Toyota Celica - Bearing
- Tamiya® - Vanquish - Bearing
- Tamtech® - 1-24TH Scale - Bearing
- E-Flite® - Blade CP RTF Micro - Bearing
- E-Flite® - Blade CX Coaxial - Bearing
- E-Sky® - Lama V3 - Replacement Bearing
- E-Sky® - Lama V4 - Replacement Bearing
- Grand Wing® - Mini Dragonfly - Bearing
- Ikarus® - ECO - Bearing
- Ikarus® - ECO 8 Electric Heli - Bearing
- Ikarus® - ECO 8 Electric Heli Full Kit With ALU - Bearing
- Ikarus® - Fun Piccolo - Bearing
- Ikarus® - Piccolo - Bearing
- Ikarus® - Piccolo Pro - Bearing
- Schluter® - Eolo Pro - Bearing
- Schluter® - Eolo R22 - Bearing
- Schluter® - Eolo Spirit Pro - Bearing
- Schluter® - Spirit Pro - Bearing
Cross References
- NTN® 692-ZZA
- ADR AX2-ZZ
- MPB EL2CHH
- BSC OB13-ZZ
- NTN® W692SSA
- NTN® W692-ZZA
- R620Y32ZZ
- R620Y32-ZZ
- R620-ZZ
- OB13ZZ
- W692ZZA
- 692A-ZZMC3
- 692-Z-SS
- 692-Z-JAP
- 692-SS
- 692ZSS
- 692-ZZ-SS
- 692ZZSS
- 692ZJAP
- 692ZZJAP
- 692AZZMC3
- 692-ZZ-JAP
- AX2ZZ
- 692A Basic Size Ref
