W0020-LE-005-003-C - Datasheet
MBA
Category Information

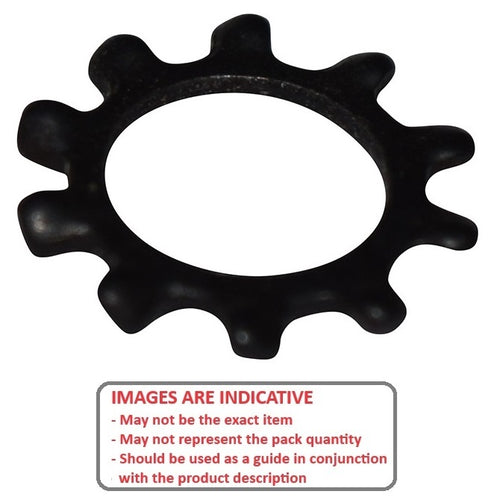

Washers - Lock - External Tooth - Spring SteelSpring Steel External Tooth Lock Washers. Spring steel, external toothed selection.
- Lock washers are available in many different materials and types, including tabbed, split and toothed. An expanded range may be available on special order. Please enquire.
- Designed to prevent nuts and bolts from loosening due to vibration or torque by creating tension and friction within the bolted joint, effectively securing the connection and preventing unwanted rotations.
- Dimensions are nominal and may vary between batches.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

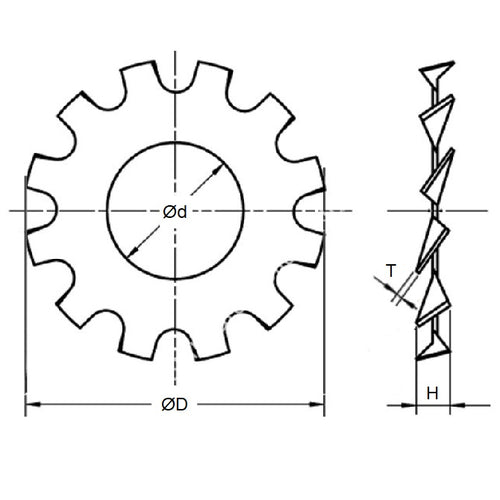

- Nominal Inside Diameter : 2.00 mm
- Outside Diameter 4.5 mm
- Material Thickness (T) 0.30 mm
- Nominal Screw Size M2, 2-56, 2-64
- Actual ID (Ref) 2.2 mm
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- MD6797MQZE020
