Miniature Bearings Australia
RP020-0160-420 - Datasheet
ENQUIRE
Category Information

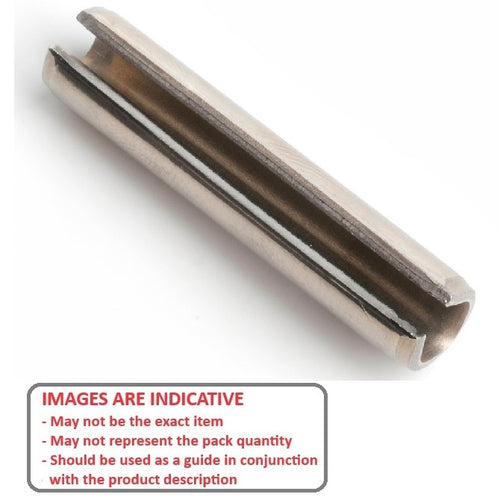

Pins - Roll - Stainless Steel - 420 Grade420 Grade Stainless Steel Roll Pins. 420 grade stainless DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

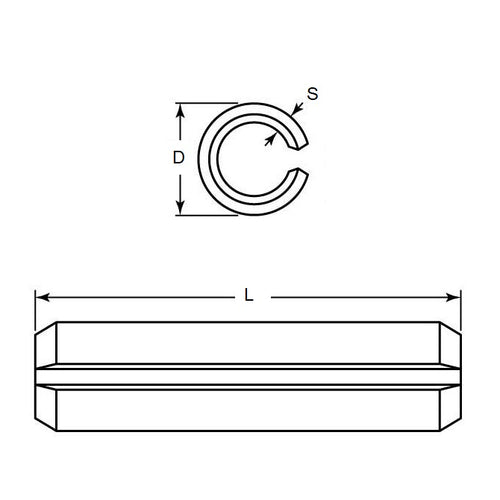

- Nominal Diameter (D) : 2.00 mm
- Length (L) 16.00 mm
- Free Diameter 2.20 mm
- Thickness (S) 0.40 mm
- Chamfer Length (cL) 0.35-0.55 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Stainless Steel AISI 420C Rc 46-52
Product Compliance and Data
Additional Resources
Cross References
- NoCor® SPMS-020-016
- NoCor® SPMS-020-016-420SS
- MD1481MXO020X016
- SPMS020016420SS
