RP020-0100-C - Datasheet

MBA

Category Information

Pins - Roll - Carbon Steel

Carbon Steel Roll Pins. Plain carbon spring steel DIN1481/ISO8752.

  • An expanded range may be available on special order. Please enquire.
  • Also known as sel-lok and bissell pins

Product Data

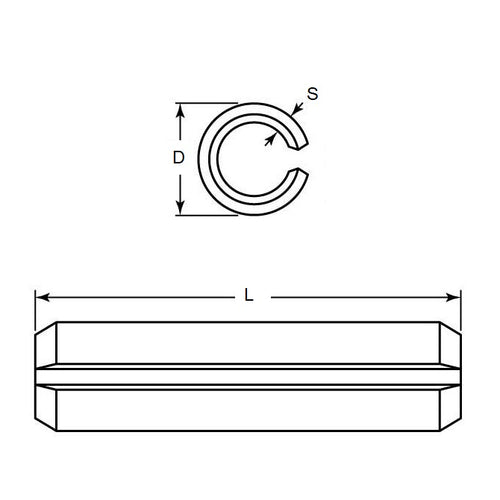

  • Nominal Diameter (D) : 2.00 mm
  • Length (L) 10.00 mm
  • Free Diameter 2.20 mm
  • Thickness (S) 0.40 mm
  • Chamfer Length (cL) 0.35-0.55 mm
  • Standard DIN1481 / ISO8752
  • Type Standard
  • Material Carbon Spring Steel Self Finish
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Brighton Best® 802015
  • 91611A104
  • Huyett® SPCM-020-010
  • NoCor® SPCM-020-010
  • NoCor® SPM-020-010
  • NoCor® SPMP-020-010
  • Brighton Best® Spring-Pin-M2x10
  • SAP2-10
  • SAP210
  • SpringPinM2x10
  • MD1481MQB020X010
  • SPMP020010
  • SPM020010
  • SPCM020010
View full details

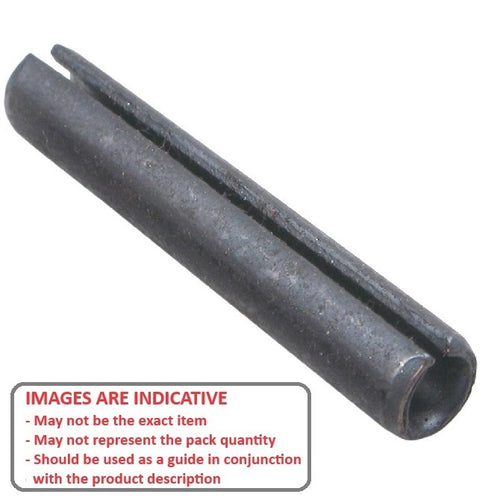

RP020-0100-CDiagramRP020-0100-CImage
