Miniature Bearings Australia
P-UC205-16-ASL - Datasheet
KMS
Category Information

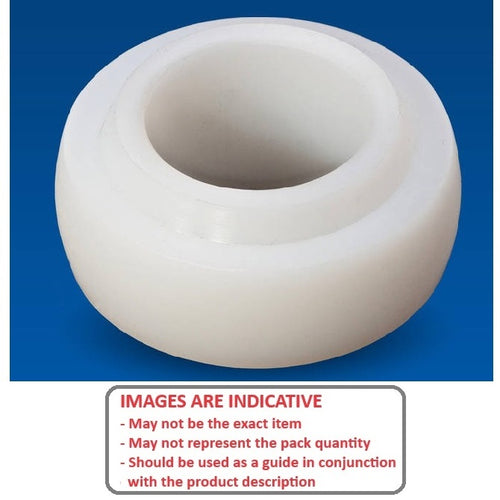

Bearings - Spherical OD - Suits Plastic Housing - Solid AcetalSolid Acetal Suits Plastic Housing Spherical OD Bearings. Insert bearings ideal for wet conditions. Similar to wide inner ring bearings for P, F, Fl type housings but solid plastic.
- Spherical OD bearings are similar to a standard single row ball bearing, except that the spherical OD allows for them to be swivel assembled into a spherical seating housing.
- Load and speed calculations are for reference only. Testing is recommended.

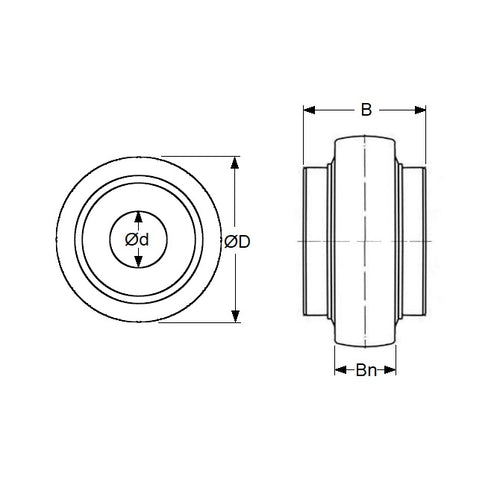

Product Data
- Inside Diameter : 25.400 mm
- Outside Diameter 52.000 mm
- Bearing Width 18.000 mm
- Suits Housing P205PE / F205PE / FL205PE / FB205PE
- Type Solid Sleeve Type
- Overall Width 31.750 mm
- Max RPM 300
- Load Capacity (Dynamic) 165.2 Kg
- Load Capacity (Static) 189.7 Kg
- Material Acetal
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Cross References
- KMS SIB-1
- KMS SIB205-1
- ASLUC20516
- SIB1
- SIB2051
