LCHP-0254-114-TSS - Datasheet
MBA
Category Information

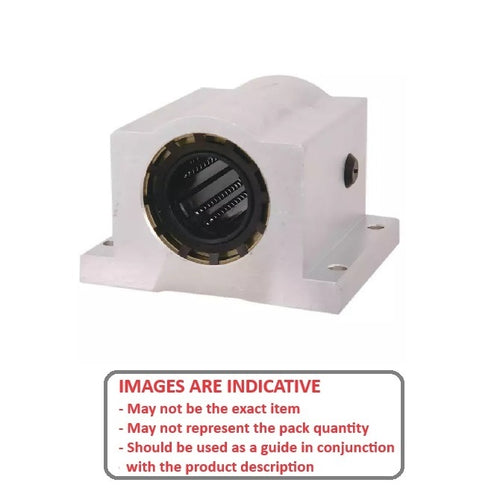

Linear - Thomson Super Smart Housings - Twin Pillow Block - ClosedClosed Twin Pillow Block Thomson Super Smart Housings Linear. Includes Bearings.
- Universally self-aligning bearing offers twice the load capacity or 8 times the travel life of our industry standard Super Ball Bushing® bearing. Standard single or twin pillow block.
Product Data

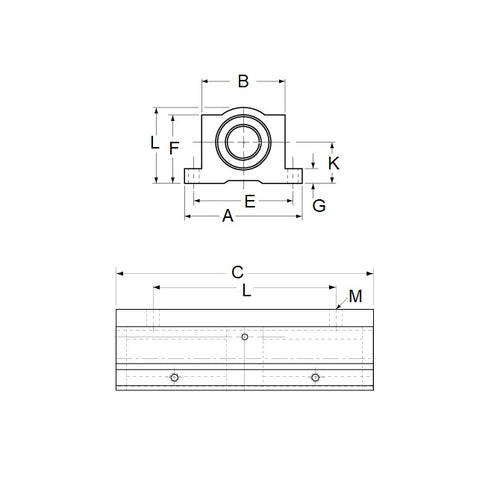

- Nominal Diameter
:
25.400
mm
(Equiv. 1 in.) - Overall Length (C)
82.550
mm
(Equiv. 3.25 in.) - Height (B)
60.452
mm
(Equiv. 2.38 in.) - Width (A) 152.400 mm
- Bolt Centres (D) 82.550 mm
- Bolt Width (E) 73.025 mm
- Height (F) 49.276 mm
- Flange Thickness (G) 9.652 mm
- Hole Diameter (J) 5.588 mm
- Centre Height (K) 30.150 mm
- Overall Height (L) 55.626 mm
- Dynamic Load Capacity 1723.650 kgf
Product Compliance and Data
Additional Resources
Cross References
- Thompson SSUTWN-16
- TLM-1020
- TLM1020
- SSUTWN16
