LOHP-0254-152-TSS - Datasheet
MBA
Category Information

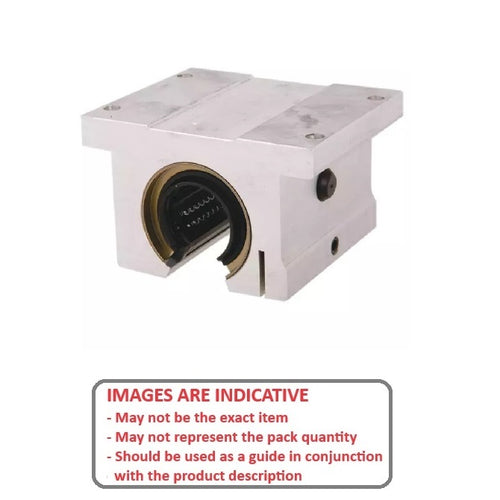

Linear - Thomson Super Smart Housings - Twin Pillow Block - OpenOpen Twin Pillow Block Thomson Super Smart Housings Linear. Includes Bearings.
- Universally self-aligning bearing offers twice the load capacity or 8 times the travel life of our industry standard Super Ball Bushing® bearing. Standard single or twin pillow block.
Product Data

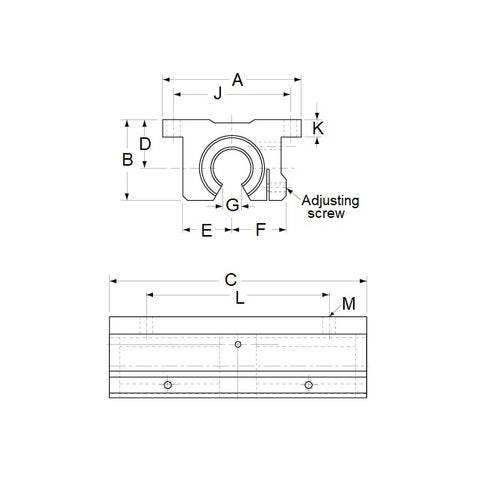

- Nominal Diameter
:
25.400
mm
(Equiv. 1 in.) - Overall Length (C)
152.400
mm
(Equiv. 6 in.) - Height (B)
50.800
mm
(Equiv. 2 in.) - Width (A) 82.550 mm
- Centre Height (D) 30.150 mm
- Centre Width (E) 30.226 mm
- Centre Width (F) 31.750 mm
- Opening Distance (G) 13.462 mm
- Bolt Centres (J x L) 73.025 x 44.450 mm
- Dynamic Load Capacity 862 kgf
- Bolt Hole (M) 5.588 mm
- Flange Thickness (K) 9.652 mm
Product Compliance and Data
Additional Resources
Cross References
- Thompson SSUTWNO-16
- TLM-1155
- TLM1155
- SSUTWNO16
