ORB-02477-533-S70-318-C - Datasheet
MBA
Category Information

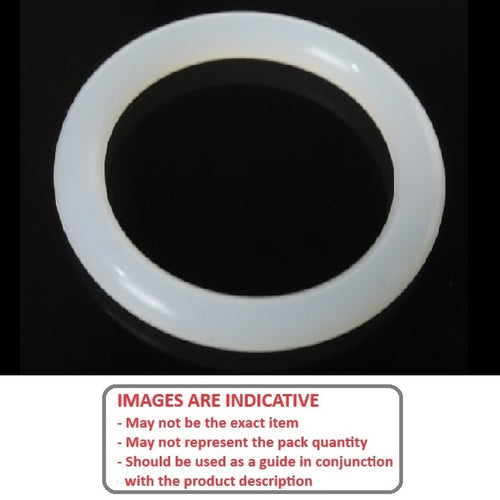

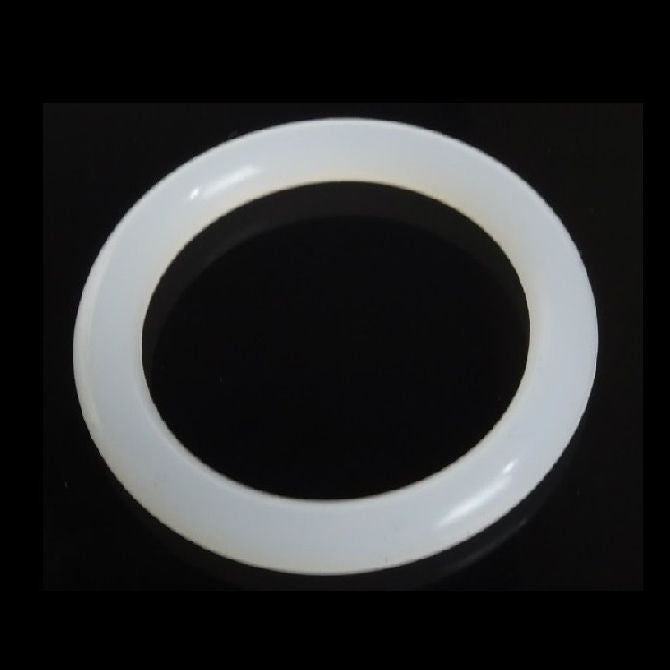

O-Rings - Silicone Rubber BulkSilicone Rubber Bulk O-Rings. High thermal resistance and cold flexibility. Some dental applications are included in the listings. Commonly used in food applications.
- Silicone O-Rings have high thermal resistance and cold flexibility.
- Some dental applications are included in the listings. Commonly used in food applications.
- Mulitple packs may be supplied together in a singular package.
- Temperature Range: -70 Deg C to +200 Deg C.
- Good dialectric properties and resistance to ozone and oxygen attack.
- Retains flexibility at high and low temperatures.
- Poor strength and tear resistance. Poor resistance to oils, fuels, concentrated acids and alkalis, water and steam.
- Bulk stock orders are the most economical way to purchase, but smaller packs are available for some sizes.
Product Data
- Inside Diameter (ID)
:
24.77
mm
(Equiv. 0.975 in.) - Section (t)
5.33
mm
(Equiv. 0.21 in.) - Colour Clear
- Hardness Duro 70
- Material Silicone Rubber
Product Compliance and Data
Additional Resources
Cross References
- OR02477533S70318C
- OR-02477-533-S70-318-C
