ORB-02030-262-N70-117 - Datasheet

MBA

Category Information

O-Rings - General Purpose - Nitrile Rubber Bulk

Nitrile Rubber Bulk General Purpose O-Rings. General purpose. Includes o-rings for dental handpiece applications.

  • Neoprene and Nitrile O-Rings with excellent resistance to ageing and weathering effects.
  • Mulitple packs may be supplied together in a singular package.
  • Temperature Range: -30 Deg C to +90 Deg C.
  • Nitrile: Excellent resistance to mineral oil based fluids, hydrocarbon fuels, greases and water.
  • Not suitable for aromatic hydrocarbons, chlorinated hydrocarbons, brake fluid and some fire resistant hydraulic fluids.
  • Bulk stock orders are the most economical way to purchase, but smaller packs are available for some sizes.

Product Data

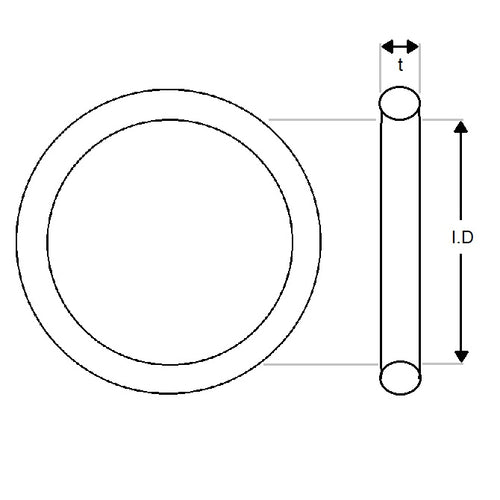

  • Inside Diameter (ID) : 20.30 mm
    (Equiv. 0.799 in.)
  • Section (t) 2.62 mm
    (Equiv. 0.103 in.)
  • Colour Black
  • Hardness Duro 70
  • Material Nitrile (NBR, BUNA-N)
Country of Origin: TW

Product Compliance and Data

Additional Resources

Cross References

  • OR02030262N70117
  • OR-02030-262-N70-117
