Miniature Bearings Australia
TP-028-0254-C - Datasheet
MBA
Category Information

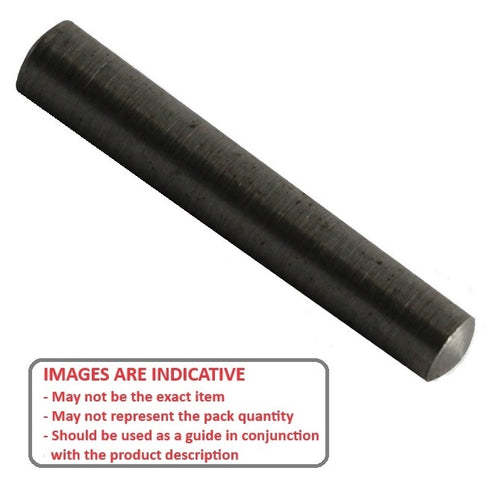

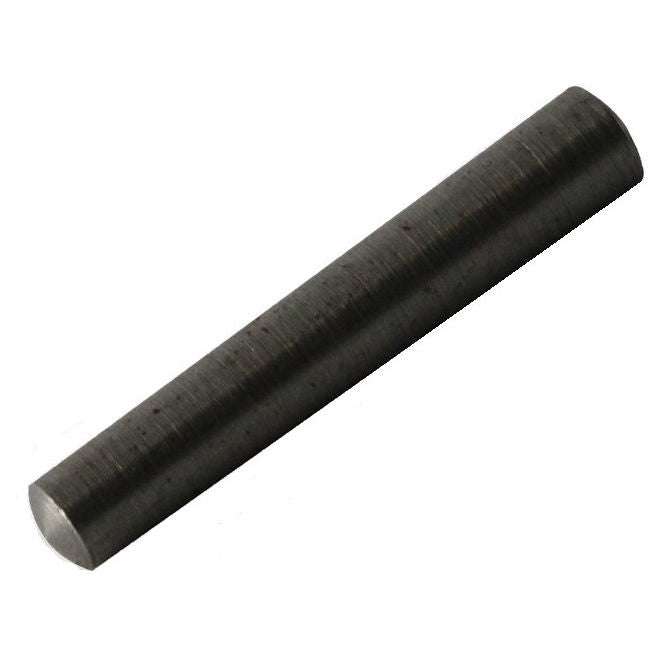

Pins - Taper Imperial - Miniature - Carbon SteelCarbon Steel Miniature Taper Imperial Pins. Imperial Sizes Tapered 1:48 (1/4 in. per foot). Miniature sizes.
- An expanded range may be available on special order. Please enquire.
Product Data

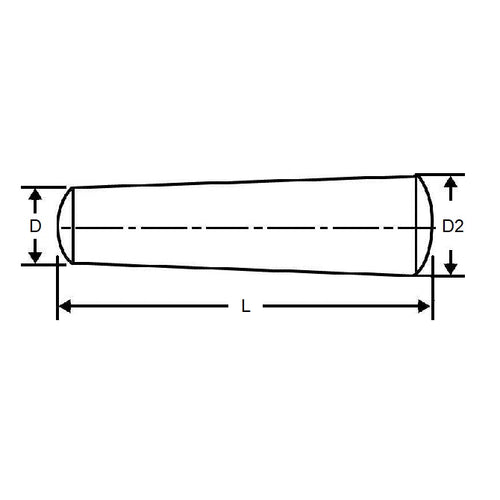

- Nom. Large End Diameter (D2) : 2.78 mm
- Length (L) 25.40 mm
- Nom. Small End Diameter (D) 2.25 mm
- Pin Number 4/0
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 98390A071
- Huyett® TP-40-1000
- NoCor® TP-40-1000
- TP401000
- A9C38-4032
- A9C384032
