DP025-030-CH-1 - Datasheet
NoCor
Category Information
Pins - Dowel - Standard - Chamfered Ends - Carbon SteelCarbon Steel Chamfered Ends Standard Dowel Pins. Precision Dowel Pins - Based on DIN6325, ISO2338
- Also known as parallel pins
- Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
- An expanded range may be available on special order. Please enquire.

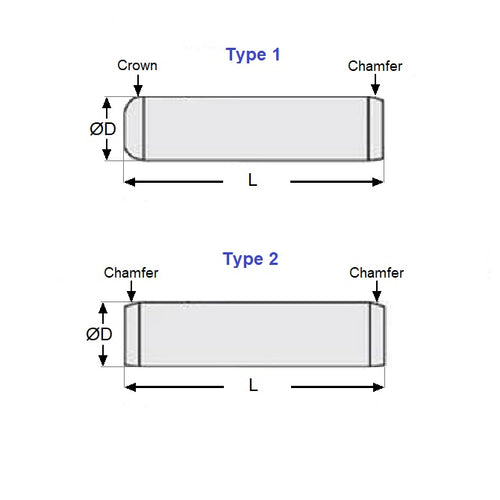

- Note! Type 2 pins may be supplied in lieu of type 1 pins.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Diameter (D)
:
2.500
mm
+ 0.002 / + 0.008
(Equiv. 0.098 in.) - Length (L)
30.00
mm
+/- 0.500
(Equiv. 1.181 in.) - Approx. Overall Length
30.00
mm
+/ - 0.500
(Equiv. 1.181 in.) - Type 1 (Chamfer One End)
- Standard Based on DIN 6325
- Material Steel 100Cr6 - Heat Treated and Ground Rc 58-62
Product Compliance and Data
Additional Resources
Cross References
- NoCor DOWMH-025-030
- DOWMH025030
- DH2.5-30
- DH2530
