KW-024-034-077-S3 - Datasheet
ExaktKey
Category Information

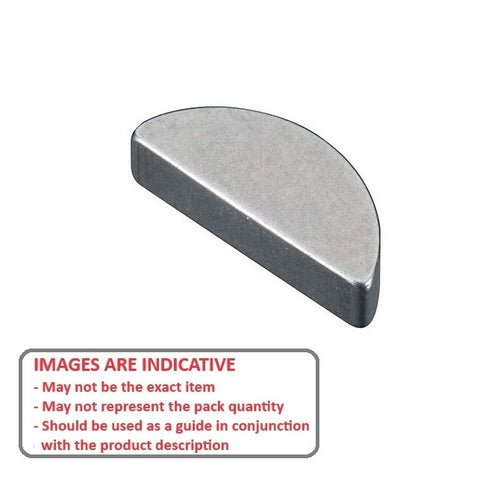

Keys - Woodruff - 303 Stainless Steel303 Stainless Steel Woodruff Keys. This is the main category in this series
- An expanded range may be available on special order. Please enquire.
Product Data

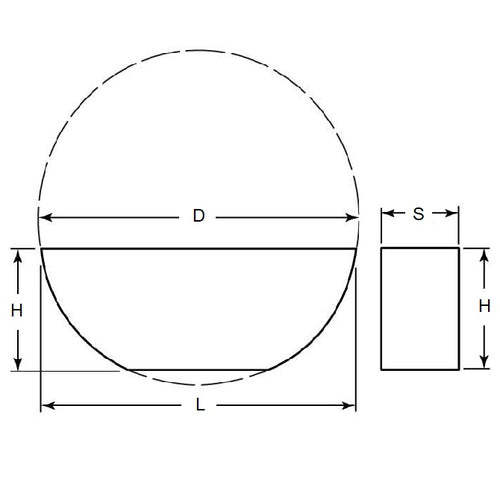

- Thickness (S)
:
2.38
mm
+/- 0.025
(Equiv. 0.094 in.) - Approx. Height (H)
3.4
mm
+/- 0.250
(Equiv. 0.134 in.) - Approx. Length (L) 7.65 mm
- Basis Diameter (D) 7.94 mm
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- ANSI 302.5-SS
- NoCor® 3025SS
- NoCor® A9X490310
- Key Size 207 Stainless
- Huyett® WKS-207
- NoCor® WKS207
- KW024079S3
- A9X49-0310
