PSP-024-013H-S2 - Datasheet
MBA
Category Information

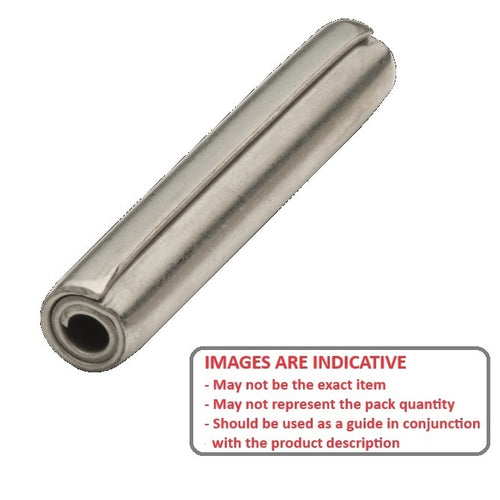

Pins - Coiled - Stainless - Heavy DutyHeavy Duty Stainless Coiled Pins. Spirol Pins. Coiled roll pin.
- An expanded range may be available on special order. Please enquire.
Product Data

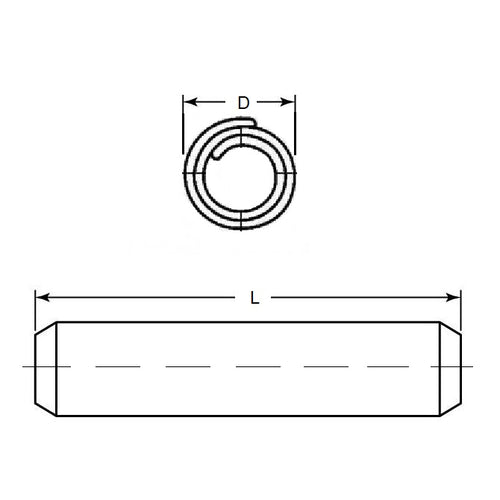

- Nominal Hole Diameter : 2.38 mm
- Length
12.70
mm
+/- 0.25
(Equiv. 0.5 in.) - Drill Size 2.38 - 2.46 mm
- Loose Diameter 2.49 - 2.57 mm
- ISO Heavy Duty ASME B18.8.2 / ISO 8748
- Hardness Unhardened
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 95765A215
- Huyett® SPC3P-093-0500H
- NoCor® SPC3P-093-0500H
- SPC3P0930500H
