SR133A-ZZS-MC3-JP6 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

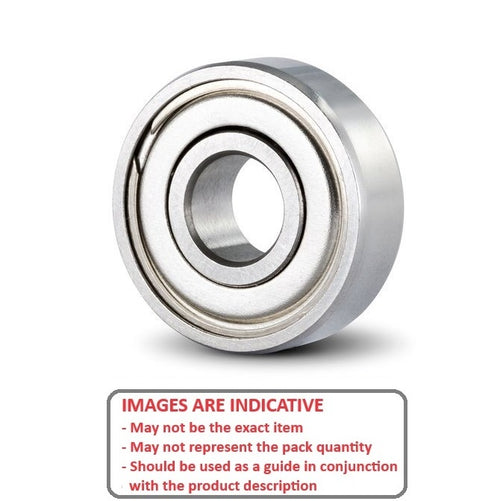

Double shielded P6 precision stainless steel bearing

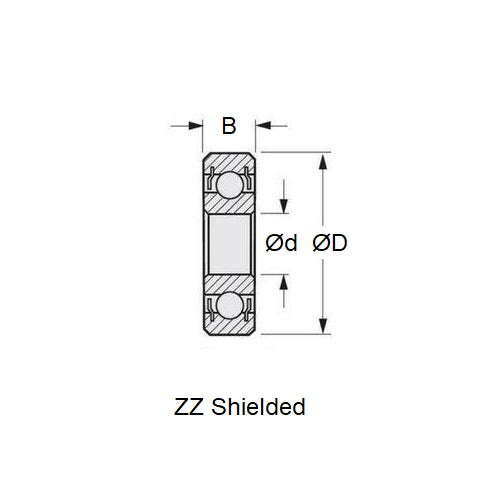

- ID (d)
:
2.381
mm
+ 0.000 / - 0.007
(Equiv. 0.094 in.) - O.D. (D)
4.763
mm
+ 0.000 / - 0.007
(Equiv. 0.188 in.) - Width (B)
2.381
mm
+ 0.000 / - 0.040
(Equiv. 0.094 in.) - Precision Grade P6
- Closure Type ZZS
- Bearing Type Radial
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part R133A
- Limiting Speed 84000
- Cage Type Crown
- Static Load Rating KGf 5.5
- Dynamic Load Rating KGf 15
- Radii 0.10 mm
- Inner Shoulder (UI) 3.00mm
- Outer Shoulder (UO) 4.20 mm
- Number of Balls 10
- Clearance MC3 (5 to 10)
- Precision Grade P6
- Closure Type ZZS
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- Dental Handpiece Parts
- RC Car Parts
- BIEN AIR® - PM AM - Bearing for Middle Gear
- BIEN AIR® - PM RM 1:1 - Bearing for Middle Gear
- MK-Dent® - LE15L - Bearing for Middle Gear
- MK-Dent® - LP15L - Bearing for Middle Gear
- Team Losi® - DoubleX Steering - Bearing
- Team Losi® - XX - XXCR - XXT CR - Belt Tensioner Bearing
- Team Losi® - XX - XXCR - XXT CR - Replacement Steering Bearing
- Team Losi® - XXX-2WD Off-Road Racing Buggy - Bearing
- Team Losi® - XXX-BK2 Racer - Bearing
- Team Losi® - XXX-Kinwald Graphite Edition - Bearing
- Team Losi® - XXX-NT AD Version - Bearing
- Team Losi® - XXX-S - Bearing
- Team Losi® - XXX-T MF2 Sports - Bearing
Cross References
- Generic Dental 20177
- Generic Dental 25027S
- KaVo® 701.01.77
- KaVo® BE5027
- Stainless R133AZZSMC3JP6
- Stainless R133A-ZZS-MC3-JP6
- SSISO R133ZZP6
- SSISO R133-ZZ-P6
- GRW S2380-2Z
- GRW S2380-2Z-P6
- MPB S3332CHH
- GRW SS2380-2Z
- GRW SS2380-2Z-P6
- MPB SS3332CHH
- NHBB® SSR133PP
- RMB® ULZ3006X
- ADR WAX3-32-ZZ
- P6-SR133SS
- P6SR133SS
- SSR13332ZZ
- SSR133SS
- SSR1-3332-ZZ
- SS-R1-3332-ZZ
- DDR1-3332-ZZ
- DDR13332ZZ
- DD-R1-3332-ZZ
- SS23802ZP6
- WAX332ZZ
- R133A Basic Size Ref
