RCL-020-047-S4 - Datasheet
Brighton Best
Category Information

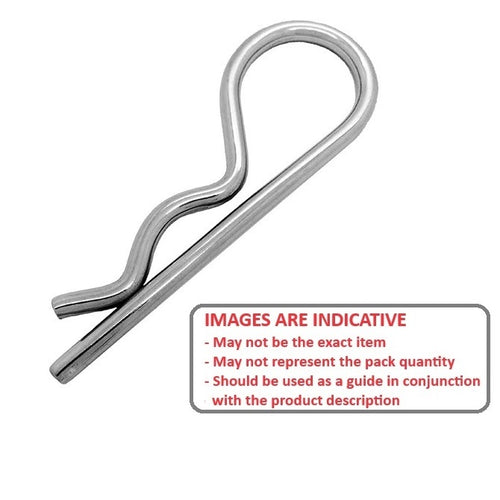

R Clips - Single Coil - Stainless SteelStainless Steel Single Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- An expanded range may be available on special order. Please enquire.
Product Data

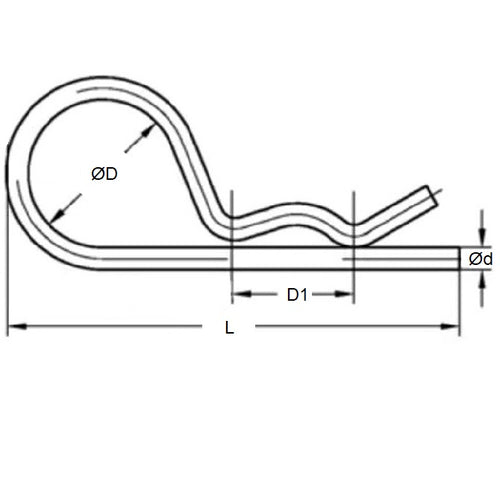

- Wire Thickness (d) : 2.00 mm
- Length (L) 47.0 mm
- Material 304 Stainless Steel
- Drill Hole Size 2.38 mm
- Approx.Inside Eye (D) 9.00 to 13.00 mm
- Shaft Size Range 9.53 to 12.70 mm
- Approx. Bridge Length (D1) 14 mm
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best® W22020
