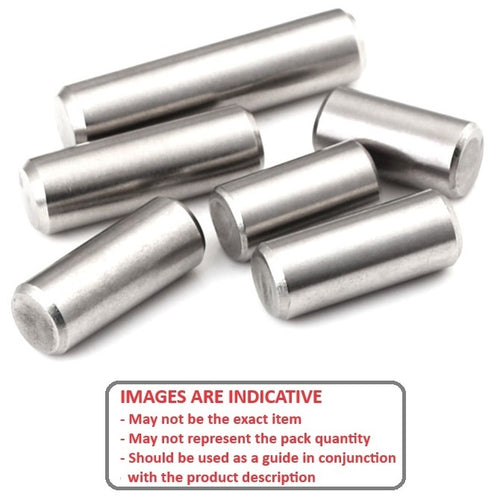

Pins - Dowel - Standard - Chamfered Ends - 303-304 Stainless303-304 Stainless Chamfered Ends Standard Dowel Pins. Precision Dowel Pins - 303/304 Grade Stainless - Based on DIN6325, ISO2338, ISO 8734
- Also known as parallel pins
- Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
- An expanded range may be available on special order. Please enquire.
- Note! Type 2 pins may be supplied in lieu of type 1 pins.
Product Data
- Diameter (D)
:
1.000
mm
+ 0.002 / + 0.008
(Equiv. 0.039 in.) - Length (L)
4.00
mm
+/- 0.254
(Equiv. 0.157 in.) - Approx. Overall Length
4.00
mm
+/- 0.254

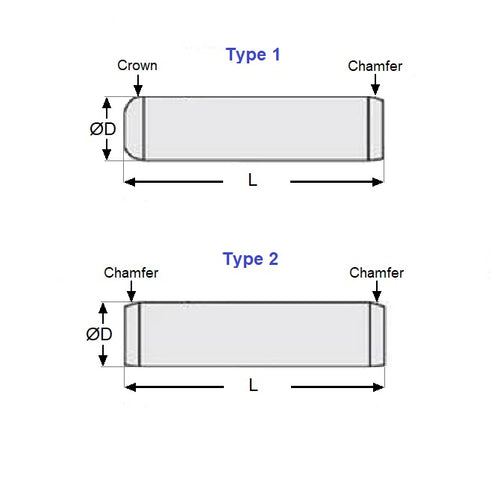

(Equiv. 0.157 in.) - Type 2 (Chamfer Both Ends)
- Chamfer 0.6 x 15 Deg
- Notes Special oversized chamfer 0.6 x 15 Deg
- Standard Modified
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
