DVWS1-POL - Datasheet

MBA

Category Information

Dual Vee - Studded Guide Wheels

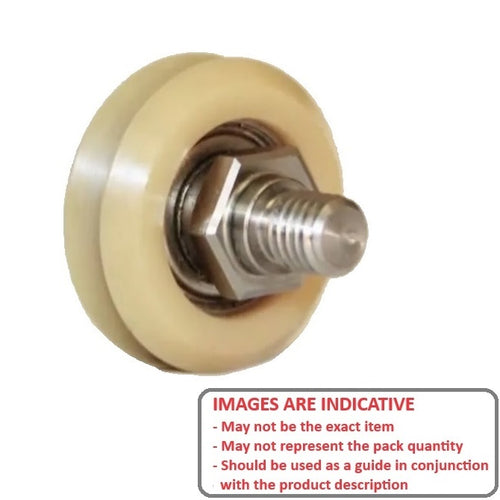

Studded Guide Wheels Dual Vee. Vee grooved track roller guide wheels.

  • An expanded range may be available on special order. Please enquire.
  • Match with correct Track Size.
  • Note! OD is reference only. Allow up to 1.2 mm larger than listed.

Product Data

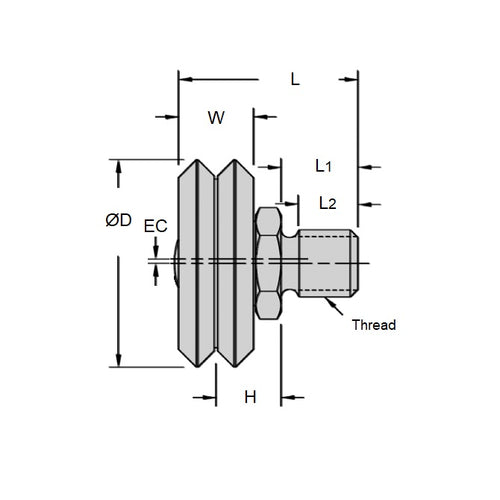

  • Size Reference : 1
  • Outside Diameter (O.D) 19.6 mm
  • Journal Width (W) 7.87 mm
  • Overall Length (L) 19.3 mm
  • Wheel Type Stationary
  • Offset Value (EC) 0.84 mm
  • Static Load (Radial / Axial) 6 / - kg
  • Thread Size x Length (l2) M8 x 1.25 x 8.1
  • Material Polymer
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • Reid Tool® WZ-421
    • WZ421
