S6-UC205-12

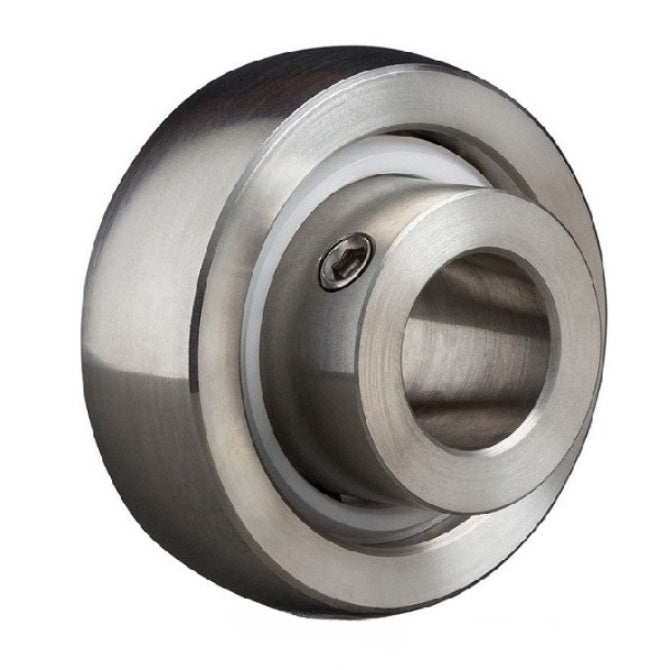

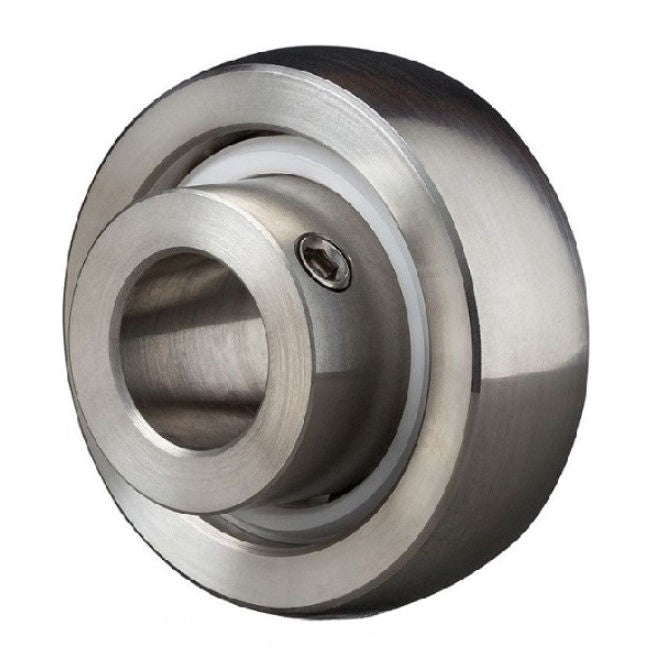

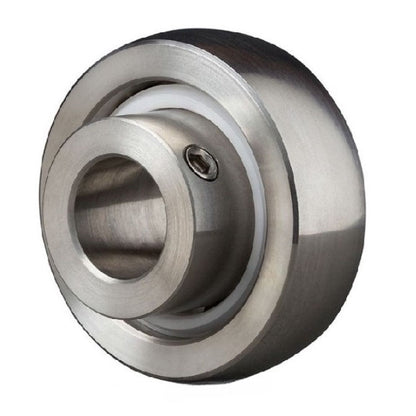

Spherical OD Bearings - 19.05x52x34 mm - Stainless Steel 316 Similar to A4, 18-10

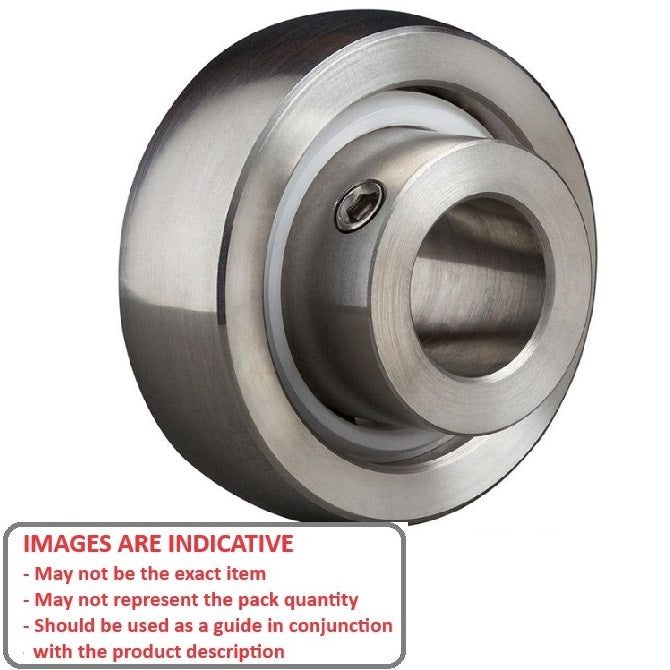

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

KMS

Price:
$295.23 AUD
$354.27 AUD $295.23 AUD
Each
Out Of Stock
Order 50 or more for $265.71 AUD Each
Pre-Order now! Backorders for more than the stock quantity are expected before Jul 04, 2025

Base Category: Bearings - Spherical OD

Top Level Category: Bearings - Spherical OD - Suits Plastic Housings - 316 Stainless

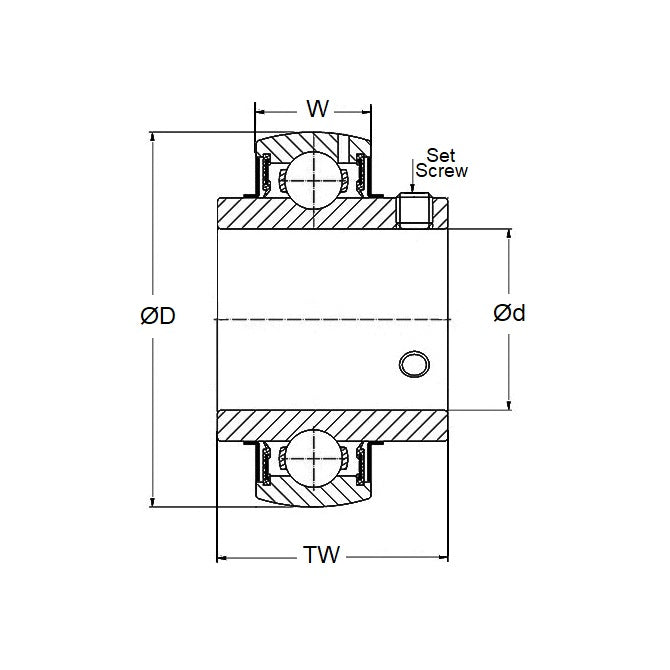

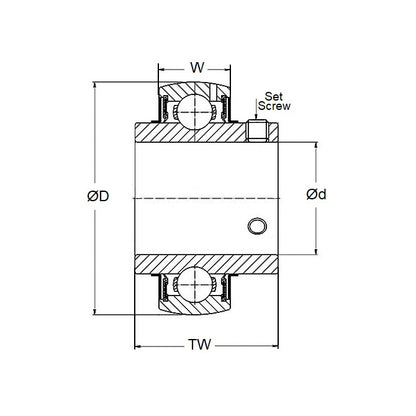

Product Details:

Inside Diameter: 19.050mm
(19.050mm is 0.75 in.)

Stainless Steel 316 (Similar to A4, 18-10)
  • Outside Diameter: 52.000mm
    (52.000mm is 2.047 in.)
  • Bearing Width: 34.000mm
    (34.000mm is 1.339 in.)
  • Suits Housing: P205PE / F205PE / FL205PE / FB205PE
  • Type: Single Row Ball
  • Max RPM: 840
  • Load Capacity (Dynamic): 104.5Kg
  • Load Capacity (Static): 69.6Kg

Brand: KMS
Country of Origin: US

Alternative Parts Include: SSIB2053/4, SSIB205-3-4, SSIB205-3/4, SSIB34L, SSIB-3-4L, SSIB20534, KMS

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
