LCHP-0191-089-TSS - Datasheet
MBA
Category Information

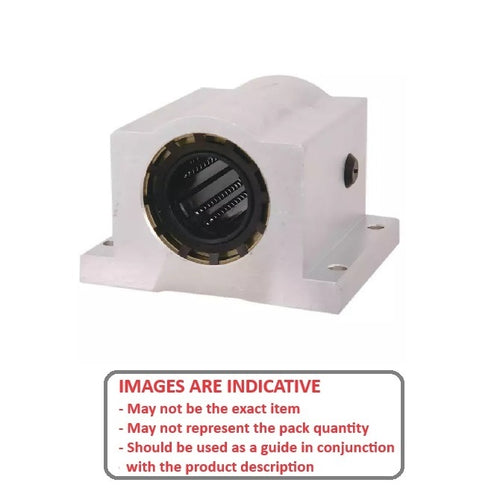

Linear - Thomson Super Smart Housings - Twin Pillow Block - ClosedClosed Twin Pillow Block Thomson Super Smart Housings Linear. Includes Bearings.
- Universally self-aligning bearing offers twice the load capacity or 8 times the travel life of our industry standard Super Ball Bushing® bearing. Standard single or twin pillow block.
Product Data

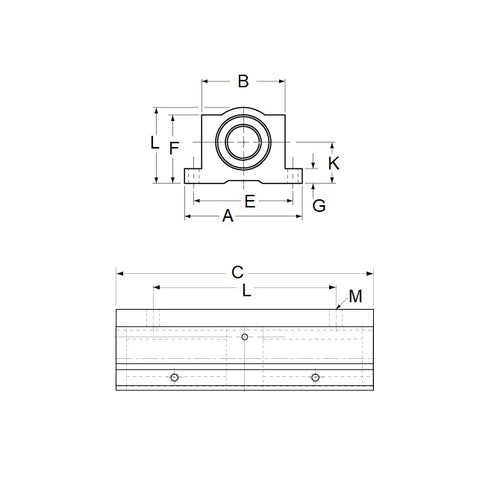

- Nominal Diameter
:
19.050
mm
(Equiv. 0.75 in.) - Overall Length (C)
69.850
mm
(Equiv. 2.75 in.) - Height (B)
47.752
mm
(Equiv. 1.88 in.) - Width (A) 114.300 mm
- Bolt Centres (D) 69.850 mm
- Bolt Width (E) 60.325 mm
- Height (F) 39.624 mm
- Flange Thickness (G) 7.874 mm
- Hole Diameter (J) 4.826 mm
- Centre Height (K) 23.800 mm
- Overall Height (L) 44.450 mm
- Dynamic Load Capacity 1025.118 kgf
Product Compliance and Data
Additional Resources
Cross References
- Thompson SSUTWN-12
- TLM1015
- TLM-1015
- SSUTWN12
