SLQ-1905-3334-10160-H - Datasheet
MBA
Category Information

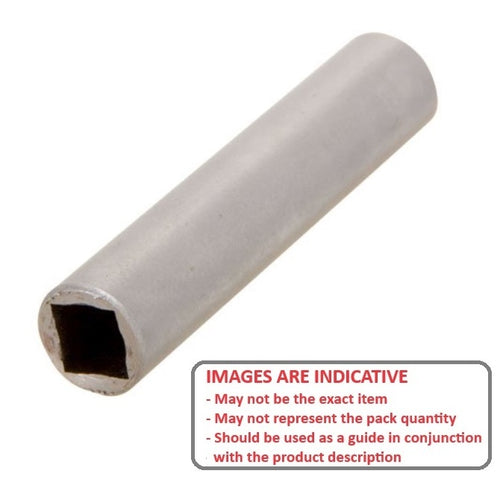

Sleeves - Square Hole - Plain - HardenedHardened Plain Square Hole Sleeves. Square and concentric to 0.076mm (0.003in). Pre-hardened to Rockwell 23-30C.
- Precisely machined, round outer surface and a uniform, precisely square-shaped hole completely through its center.
Product Data
- Nominal Square Size
:
19.050
mm
+/- 0.0254

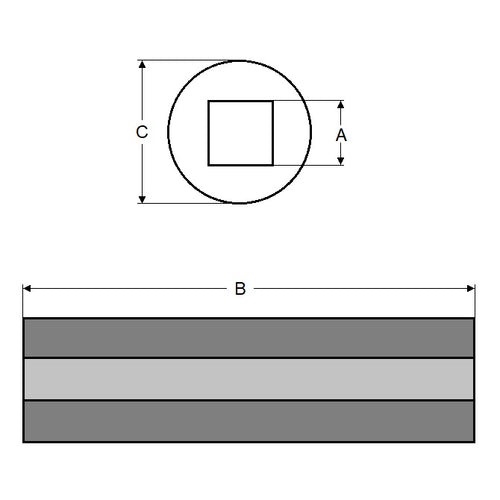

(Equiv. 0.75 in.) - Outside Diameter (C) 33.338 mm
- Length (B) 101.600 mm
- Actual Square Size (A) 19.177 mm
- Material Pre-Hardened Steel
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® SHS-750
- SHS750
