LOHP-0191-114-TSS - Datasheet
MBA
Category Information

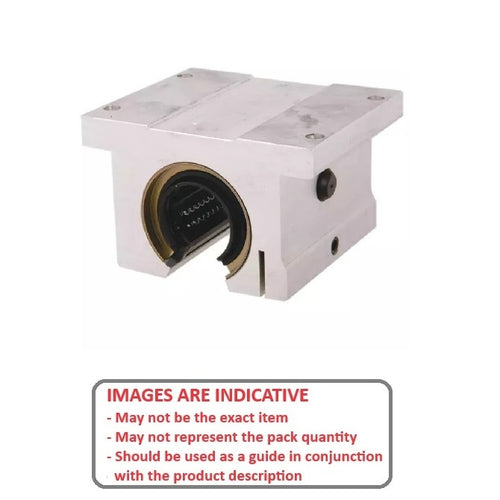

Linear - Thomson Super Smart Housings - Twin Pillow Block - OpenOpen Twin Pillow Block Thomson Super Smart Housings Linear. Includes Bearings.
- Universally self-aligning bearing offers twice the load capacity or 8 times the travel life of our industry standard Super Ball Bushing® bearing. Standard single or twin pillow block.
Product Data

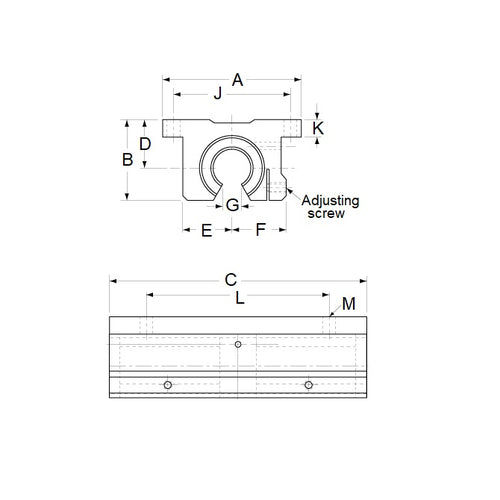

- Nominal Diameter
:
19.050
mm
(Equiv. 0.75 in.) - Overall Length (C)
114.300
mm
(Equiv. 4.5 in.) - Height (B)
39.624
mm
(Equiv. 1.56 in.) - Width (A) 69.850 mm
- Centre Height (D) 23.800 mm
- Centre Width (E) 23.876 mm
- Centre Width (F) 25.400 mm
- Opening Distance (G) 10.414 mm
- Bolt Centres (J x L) 60.325 x 31.750 mm
- Dynamic Load Capacity 513 kgf
- Bolt Hole (M) 4.826 mm
- Flange Thickness (K) 7.874 mm
Product Compliance and Data
Additional Resources
Cross References
- Thompson SSUTWNO-12
- TLM1150
- TLM-1150
- SSUTWNO12
