MAG-S-19-019-AN - Datasheet

MBA

Category Information

Magnets - Shielded Alnico

Shielded Alnico Magnets. This is the main category in this series

  • Permanent magnet made from an alloy of Aluminum, Nickel, and Cobalt, along with iron and sometimes other metals like copper or titanium.
  • Known for their excellent heat resistance and corrosion resistance, making them ideal for high-temperature applications like electric motors, sensors, and speakers.
  • While weaker than rare-earth magnets, Alnico magnets are more durable and stronger than ferrite magnets.

Product Data

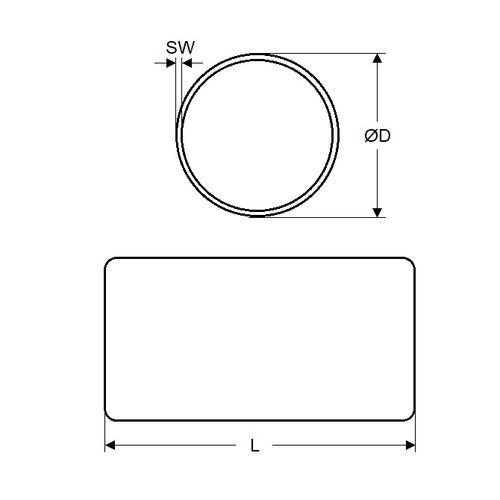

  • Diameter (A) : 19.05 mm
    (Equiv. 0.75 in.)
  • Length (B) 19.05 mm
    (Equiv. 0.75 in.)
  • Sidewall Thickness 1.57 mm
    (Equiv. 0.062 in.)
  • Max Pull 0.06 kg
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • IM59
    • IM-59
