TLB-1210-0160 - Datasheet
MBA
Category Information
Bushings - TaperlockTaperlock Bushings. Taperlock Bushings for Pulleys and Sprockets.
- An expanded range may be available on special order. Please enquire.
- It is fastened tightly to the shaft via its tapered surface with the matching component.
- It provides flexibility between the main component to be suitable with many shaft sizes.

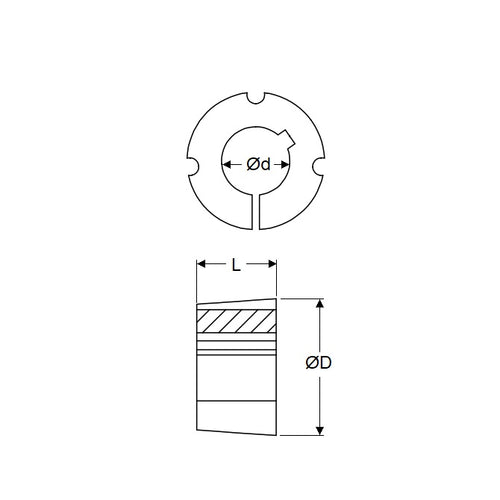

Product Data
- Bore (d) : 16.000 mm
- Large End Dia. (D) 47.5 mm
- Length (L) 25.4 mm
- Taperlock Series 1210
- No of Screws 2
- Screw Size 3/8x5/8 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- 57095K448
- TLB-1210-16
- TLB121016
