AD-2016 - Datasheet
C-JAC
Category Information
Shock Absorbers - Hydraulic - Adjustable - C-JacC-Jac Adjustable Hydraulic Shock Absorbers. This is the main category in this series
Product Data

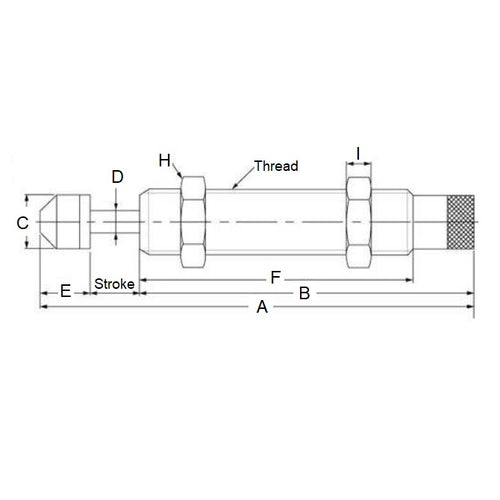

- Stroke : 16.0 mm
- Thread (C) M20 Extra Fine (20x1.5mm)
- Length (A) 148.8 mm
- Shaft Size (D) 6.0 mm
- Max. Effective Mass 200 Kg
- Max. Nm Per Cycle 39 Nm
- Max. Nm Per Hour 30000 Nm
- Max Impact Speed 3.5 m/s
- Weight 230 g
- Body Length (B) 117.0 mm
- Tip Diameter (C) 17.8 mm
- Tip Length (E) 15.8 mm
