3802B-2RS-ECO - Datasheet
ECO
Category Information
Bearings - Angular Contact - Double Row Ball - Chrome SteelChrome Steel Double Row Ball Angular Contact Bearings. Double Row Ball Bearings - Angular Contact.
- These bearings have four points of contact between the balls and the raceways, allowing them to accommodate thrust loads in addition to radial loads.
- These bearings have raceways in the inner and outer rings that are offset to each other and are inclined at an angle to the bearing axis.
- Angular contact bearings are used in various applications where precise rotation, high-speed performance, and load-carrying capacity are required. An expanded range may be available on special order. Please enquire.
Product Data

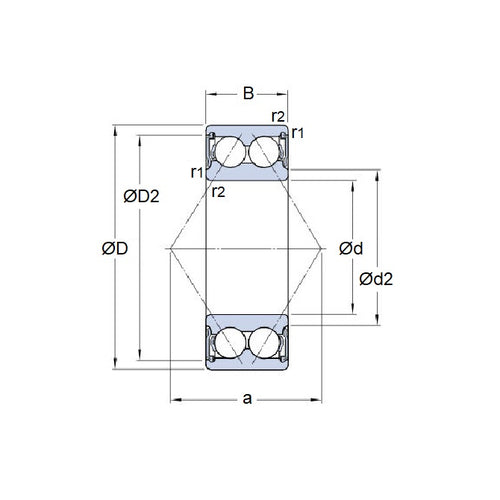

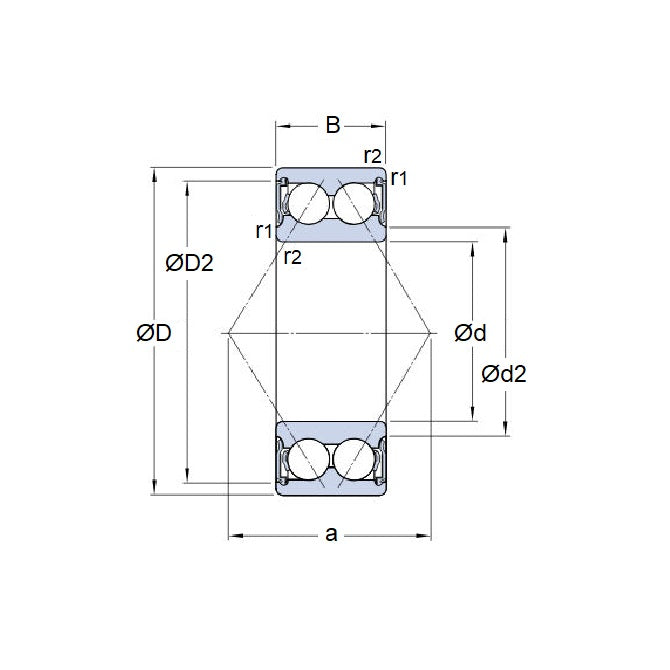

- ID (d)
:
15.000
mm
(Equiv. 0.591 in.) - OD (D)
24.000
mm
(Equiv. 0.945 in.) - Width (B)
7.000
mm
(Equiv. 0.276 in.) - Precision Grade Abec 1
- Closure Type 2RS
- Bearing Type Double Row Angular Contact
- Material Chrome Steel SAE 52100 - High Speed Polyamide Cage
