LOHP-0159-102-TSS - Datasheet
MBA
Category Information

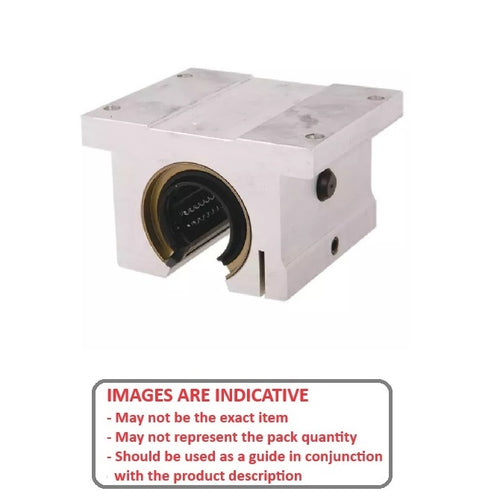

Linear - Thomson Super Smart Housings - Twin Pillow Block - OpenOpen Twin Pillow Block Thomson Super Smart Housings Linear. Includes Bearings.
- Universally self-aligning bearing offers twice the load capacity or 8 times the travel life of our industry standard Super Ball Bushing® bearing. Standard single or twin pillow block.

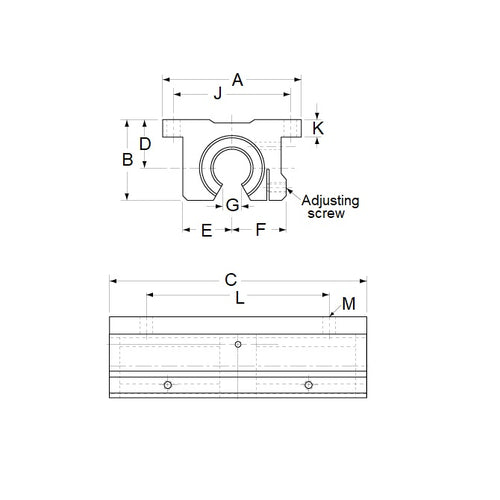

Product Data
- Nominal Diameter
:
15.875
mm
(Equiv. 0.625 in.) - Overall Length (C)
101.600
mm
(Equiv. 4 in.) - Height (B)
36.576
mm
(Equiv. 1.44 in.) - Width (A) 63.500 mm
- Centre Height (D) 22.225 mm
- Centre Width (E) 22.352 mm
- Centre Width (F) 23.876 mm
- Opening Distance (G) 8.636 mm
- Bolt Centres (J x L) 53.975 x 28.575 mm
- Dynamic Load Capacity 281 kgf
- Bolt Hole (M) 4.826 mm
- Flange Thickness (K) 7.112 mm
Product Compliance and Data
Additional Resources
Cross References
- Thompson SSUTWNO-10
- TLM-1145
- TLM1145
- SSUTWNO10
