6001B-CSN-T9H-ECO - Datasheet

ECO

Category Information

Bearings - Single Row Ball - Unflanged - Precision - Ceramic Hybrid

Ceramic Hybrid Precision Unflanged Single Row Ball Bearings. Steel Races with Si3N4 Ceramic Balls

  • Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
  • Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
  • They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
  • Bearings with steel races and ceramic balls.
  • For standard bearings, the balls are usually one of the first components to show wear.
  • Ceramic balls are harder than steel and do not wear as easily.
  • Items with high speed cages have the suffixes T9H, TNH, TW or KC

Product Data

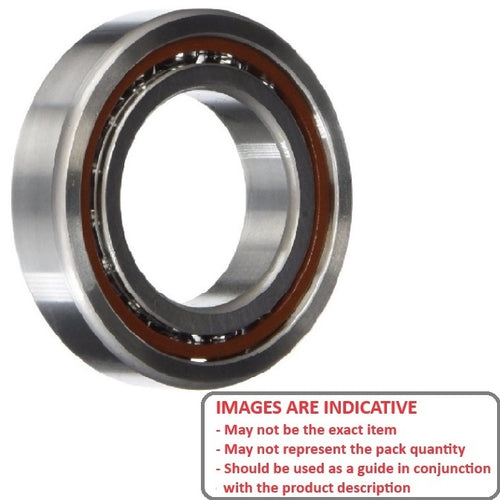

Double black rubber sealed economy ceramic-hybrid bearing with a high speed polyamide retainer and NON-ISO width

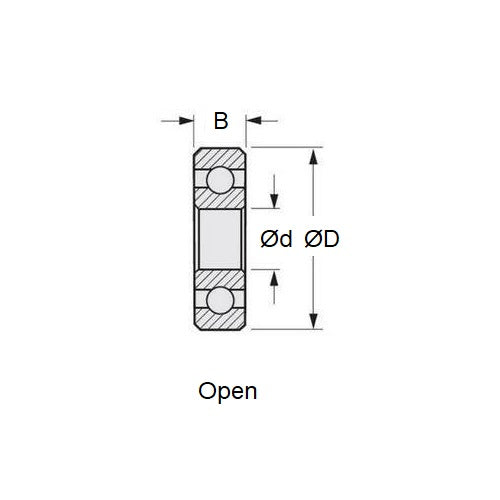

  • ID (d) : 12.000 mm
  • O.D. (D) 28.000 mm
  • Width (B) 7.000 mm
  • Precision Grade Economy
  • Closure Type Open
  • Bearing Type Radial
  • Material Chrome Steel SAE 52100 - High Speed Polyamide Cage - Ceramic Si3N4 Balls
  • Lubrication Type Grease
  • Lubrication Name Standard Unspecified
  • Basic Part 6001B
  • Limiting Speed 39520
  • Cage Type Polyamide
  • Static Load Rating KGf 161.9
  • Dynamic Load Rating KGf 349.6
  • Radii 0.30 mm
  • Inner Shoulder (UI) Undefinedmm
  • Outer Shoulder (UO) Undefined mm
  • Number of Balls 8
  • Clearance ECO (3 to 33)
  • Precision Grade ECO
  • Closure Type Open
  • Max Temperature 120 Deg. C
Country of Origin: TW

Product Compliance and Data

Additional Resources

Applications & Uses

  • RC Nitro Engine Parts
  • HB - 0.25 Old Models - Replacement Bearing
  • HB - 40 - 2 Stroke - Replacement Rear Bearing
  • HB - 50 - 2 Stroke - Replacement Rear Bearing
  • OS Engines® - 46 VX DF ABC - 2 Stroke Ducted Fan - Replacement Rear Bearing
  • OS Engines® - 61 VR-M ABC RC MAR - Replacement Rear Bearing
  • OS Engines® - 65 VR-M - DF ABC RC - Replacement Rear Bearing
  • OS Engines® - 77 VR-DF ABC RC-SML - Replacement Rear Bearing
  • OS Engines® - 77 VR-M ABC RC MAR - Replacement Rear Bearing
  • OS Engines® - 81 VR-M - Replacement Rear Bearing
  • OS Engines® - 91 VR DF - 2 Stroke Ducted Fan - Replacement Rear Bearing
  • OS Engines® - CZ-Z Recoil - 12 - Replacement Bearing
  • OS Engines® - FS Surpass RC 4C - 40 - Replacement Bearing
  • OS Engines® - FS48S - 4 Stroke - Replacement Rear Bearing
  • OS Engines® - VR - 21 - Replacement Bearing
  • OS Engines® - VR - 30 - Replacement Bearing
  • OS Engines® - VR ABC RC - 48 - Replacement Bearing
  • OS Engines® - VR-DF - 46 - Replacement Bearing
  • OS Engines® - VRDF - 46 - Replacement Bearing
  • OS Engines® - VR-DF Heat Sink Head - 46 - Replacement Bearing
  • OS Engines® - VR-DF Small Head - 77 - Replacement Bearing
  • OS Engines® - VR-M - 40 - Replacement Bearing
  • OS Engines® - VR-M Marine - 40 - Replacement Bearing
  • OS Engines® - VR-M Marine - 77 - Replacement Bearing
  • OS Engines® - VX-M - 40 - Replacement Bearing
  • OS Engines® - VX-M - 46 - Replacement Bearing
  • OS Engines® - VX-M Marine - 40 - Replacement Bearing
  • YS - FZ - 60 - Replacement Bearing
  • YS - FZ - 91 - Replacement Bearing

Cross References

  • BOCA® MR16001C-TH9-C3
  • MR16001CTH9C3
  • 6001B
  • 6001B Basic Size Ref
