SR11216-CSN-ZZS-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - Ceramic HybridCeramic Hybrid Precision Unflanged Single Row Ball Bearings. Steel Races with Si3N4 Ceramic Balls
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
- Bearings with steel races and ceramic balls.
- For standard bearings, the balls are usually one of the first components to show wear.
- Ceramic balls are harder than steel and do not wear as easily.
- Items with high speed cages have the suffixes T9H, TNH, TW or KC
Product Data

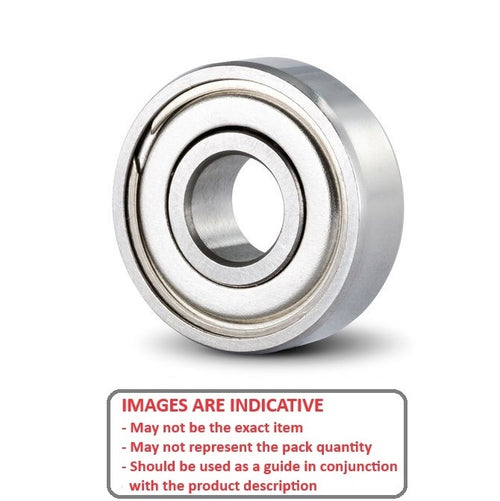

Double shielded economy stainless ceramic-hybrid bearing

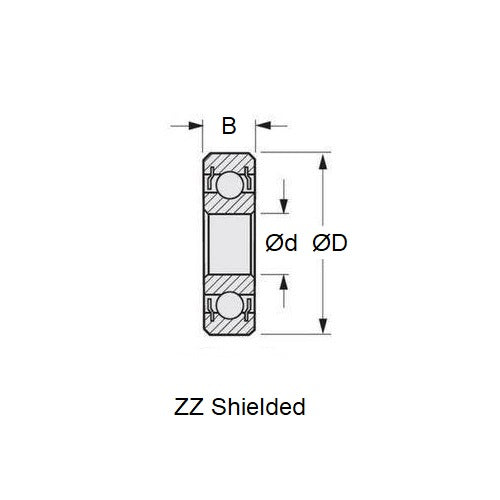

- ID (d) : 12.700 mm
- O.D. (D) 19.050 mm
- Width (B) 3.969 mm
- Precision Grade Abec 1
- Closure Type ZZS
- Bearing Type Radial
- Material Stainless Steel AISI 440C - Ceramic Si3N4 Balls
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part R11216
- Limiting Speed 22800
- Cage Type Standard
- Static Load Rating KGf 41.8
- Dynamic Load Rating KGf 71.4
- Radii 0.25 mm
- Inner Shoulder (UI) 14.50mm
- Outer Shoulder (UO) 17.30 mm
- Number of Balls 13
- Clearance ECO (3 to 33)
- Precision Grade ECO
- Closure Type ZZS
- Max Temperature 120 Deg. C
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- RC Car Parts
- Corally® - C4.1 - Replacement Bearing
- MIP Trans® - LB1000 - Replacement Bearing
- MIP Trans® - LB2000 - Replacement Bearing
- MIP Trans® - LB3000 - Replacement Bearing
- Team Losi® - 1-8 Scale Buggy with clutch bell - Replacement Bearing
- Team Losi® - DoubleX Buggy - Replacement Bearing
- Team Losi® - DoubleX Truck - Replacement Bearing
- Team Losi® - Eight-T - Replacement Bearing
- Team Losi® - GTX Gas TRK - Replacement Bearing
- Team Losi® - JRX-S 4 Wheel Sedan - Replacement Bearing
- Team Losi® - LX-T - Replacement Bearing
- Team Losi® - NXT - Replacement Bearing
- Team Losi® - Rally Street Weapon - Replacement Bearing
- Team Losi® - Street Weapon - Replacement Bearing
- Team Losi® - XX - XXCR - XXT CR - Replacement Bearing
- Team Losi® - XXX-2WD Off-Road Racing Buggy - Replacement Bearing
- Team Losi® - XXX4 - Replacement Bearing
- Team Losi® - XXX-BK2 Racer - Replacement Bearing
- Team Losi® - XXX-Buggy - Replacement Bearing
- Team Losi® - XXX-Kinwald Graphite Edition - Replacement Bearing
- Team Losi® - XXX-NT AD Version - Replacement Bearing
- Team Losi® - XXX-NT Sport - Replacement Bearing
- Team Losi® - XXX-S - Replacement Bearing
- Team Losi® - XXX-T MF2 Sports - Replacement Bearing
Cross References
- Shielded SR11216 / 4
- Shielded SSR11216 / 4
- R11216 Basic Size Ref
