Miniature Bearings Australia
RP111-0381-C - Datasheet
MBA
Category Information

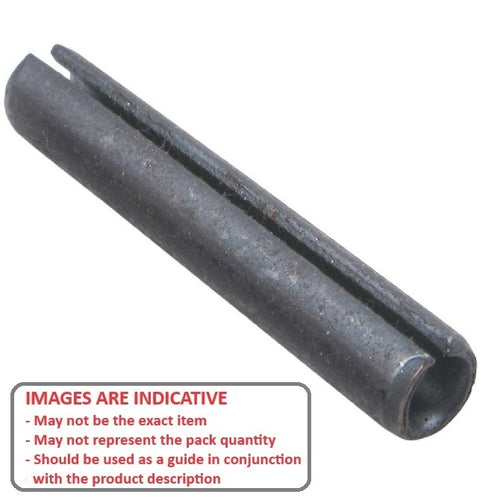

Pins - Roll - Carbon SteelCarbon Steel Roll Pins. Plain carbon spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins

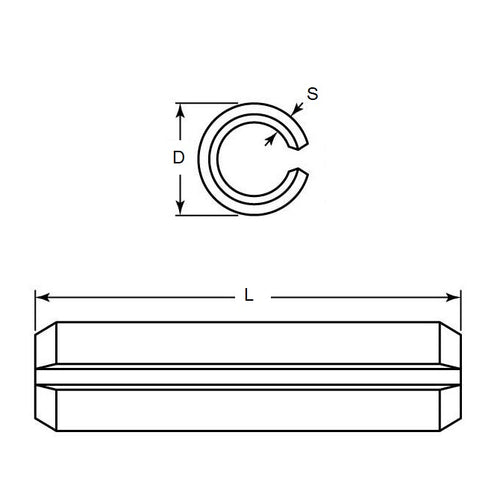

Product Data
- Nominal Diameter (D) : 11.11 mm
- Length (L) 38.10 mm
- Free Diameter 12.22 mm
- Thickness (S) 1.96 mm
- Chamfer Length (cL) 0.43-2.41 mm
- Chamfer Diameter (cD) 10.9 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- Huyett® SPP-437-1500
- NoCor® SPP-437-1500
- SPP4371500
