S6000-ZZ-ECO - Datasheet

ECO

Category Information

Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless

440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and minimal axial load in one direction. An expanded range may be available on special order. Please enquire.
Standard single row radial ball bearings.

Product Data

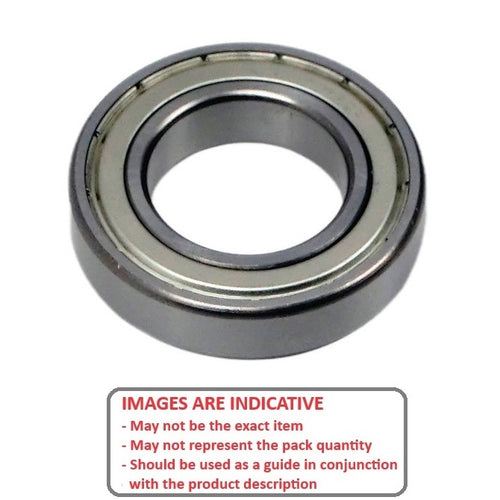

Double shielded economy stainless steel bearing

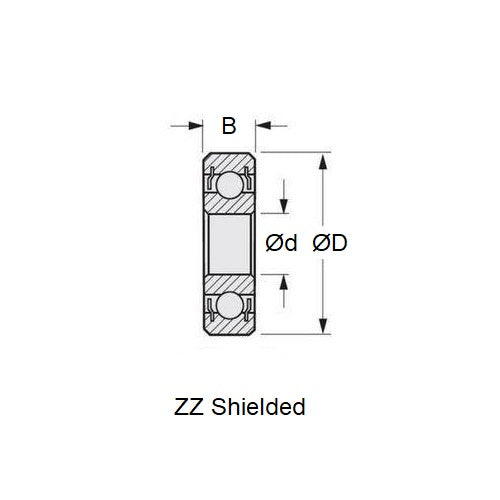

ID (d) : 10.000 mm
O.D. (D) 26.000 mm
Width (B) 8.000 mm
Precision Grade Economy
Closure Type ZZ
Bearing Type Radial
Material Stainless Steel AISI 440C

Lubrication Type Grease
Lubrication Name Standard Unspecified
Basic Part 6000
Limiting Speed 29450
Cage Type Standard
Static Load Rating KGf 190
Dynamic Load Rating KGf 439.8
Radii 0.30 mm
Inner Shoulder (UI) 12.90mm
Outer Shoulder (UO) 22.40 mm
Number of Balls 7
Clearance ECO (3 to 33)
Precision Grade ECO
Closure Type ZZ
Max Temperature 120 Deg. C

Country of Origin: TW

Product Compliance and Data

Additional Resources

Applications & Uses

RC Nitro Engine Parts
ASP® - 108 All Models - Replacement Bearing
ASP® - 91 Old - Front Bearing 10-26-8mm
CMB - 20 All Models - Replacement Bearing
CMB - 21 - Replacement Bearing
CMB - CAM - 90 - Replacement Bearing
CMB - CAM Marine - 45 - Replacement Bearing
CMB - H Racing - Green Head - 90 - Replacement Bearing
CMB - Valvola 3.5CC - 21 - Replacement Bearing
CMB - Valvola 3.5CC - 35 - Replacement Bearing
Enya® - 4C - 45 - Replacement Bearing
Mac® - 15 - Replacement Bearing
Mac® - 28 - Replacement Bearing
Mac® - 45 All Models - Replacement Bearing
Mac® - 67 All Models - Replacement Bearing
Mac® - Inboard - 67 - Replacement Bearing
Mac® - Inboard - 84 - Replacement Bearing
Magnum Power® - 120 4 Stroke - 21 - Replacement Bearing
Magnum Power® - XL - 108 - Replacement Bearing
Magnum Power® - XL - 46 - Replacement Bearing
Magnum Power® - XL 4C - 30 - Replacement Bearing
MDS - FS Pro - 61 - Replacement Bearing
Moki® - 1.8 All Models - Replacement Bearing
Moki® - 61 All Models - Replacement Bearing
MVVS - Glow Engine - 61 - Replacement Bearing
OS Engines® - FS RC Surpass 4C - 40 - Replacement Bearing
OS Engines® - FS Supercharge - 120 - Replacement Bearing
OS Engines® - FS-120 II Surpass - Replacement Bearing
OS Engines® - FS-120 Non Surpass - 91 - Replacement Bearing
OS Engines® - FS-120 Surpass III With Pump - Replacement Bearing
OS Engines® - FS-120E Surpass - Replacement Bearing
OS Engines® - FSR RC W-Muffler - 50 - Replacement Bearing
OS Engines® - FSR Ring RN - 108 - Replacement Bearing
OS Engines® - FSR-M ABC RC - 61 - Replacement Bearing
OS Engines® - RX - 21 - Replacement Bearing
OS Engines® - RX-2 Cycle - 15 - Replacement Bearing
OS Engines® - RX-EFI - 21 - Replacement Bearing
OS Engines® - RX-FI - 140 - Replacement Bearing
OS Engines® - VR-DF - 61 - Replacement Bearing
OS Engines® - VR-M - 91 - Replacement Bearing
OS Engines® - VR-Marine New - 81 - Replacement Bearing
Super Tigre® - S2000 RC - 61 - Replacement Bearing
Super Tigre® - S2500 RC - 90 - Replacement Bearing
Super Tigre® - S3000 RC - 12 - Replacement Bearing
Super Tigre® - S3250 - 15 - Replacement Bearing
Thunder Tiger® - Pro - 12 - Replacement Bearing
Thunder Tiger® - RP - 61 - Replacement Bearing
Thunder Tiger® - SF - 54 - Replacement Bearing
Webra® - Speed - 12 - Replacement Bearing
