RP100-0260-C - Datasheet
Brighton Best
Category Information

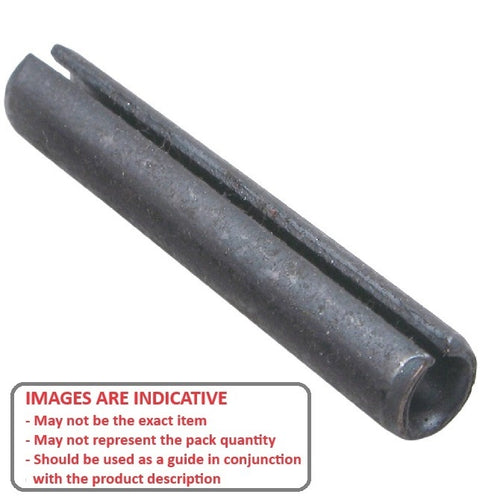

Pins - Roll - Carbon SteelCarbon Steel Roll Pins. Plain carbon spring steel DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data

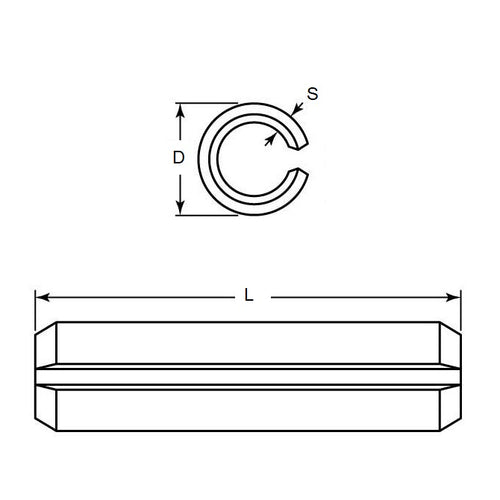

- Nominal Diameter (D) : 10.00 mm
- Length (L) 26.00 mm
- Free Diameter 11.00 mm
- Thickness (S) 2.00 mm
- Chamfer Length (cL) 2.00-2.40 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Carbon Spring Steel Self Finish
Product Compliance and Data
Additional Resources
Cross References
- Brighton Best® 802558
- NoCor® SPM-100-026
- SAP1026
- SAP10-26
- SPM100026
