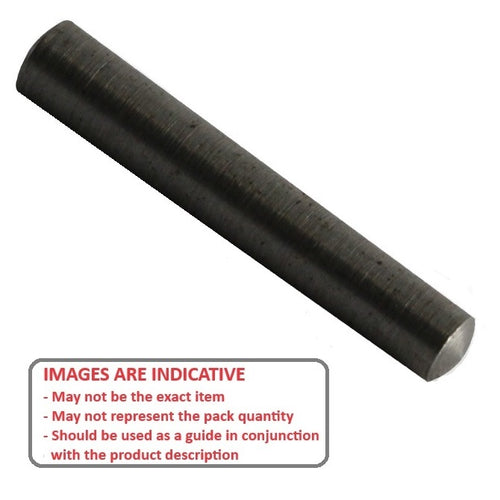

TP-103-0699-C - Datasheet
MBA
Category Information
Pins - Taper Imperial - Standard - Carbon SteelCarbon Steel Standard Taper Imperial Pins. Imperial Sizes Tapered 1:48 (1/4 in. per foot). Standard sizes numbers 0 to 14.
- An expanded range may be available on special order. Please enquire.
Product Data
- Nom. Large End Diameter (D2) : 10.32 mm
- Length (L) 69.85 mm
- Nom. Small End Diameter (D) 8.86 mm
- Pin Number 7
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 98390A374
- Huyett® TP-07-2750
- NoCor® TP-07-2750
- TP072750
