Miniature Bearings Australia - MBA Minibearings
Miniature Bearings Australia

SUS61RS - Datasheet

MBA

Category Information

Threaded Rod - Clamping Studs

Clamping Studs Threaded Rod. Metric and imperial sizes. Steel and 303 stainless steel.

  • Yield strength 100,000 PSI
  • Tensile strength 125,000 PSI

Product Data

  • Thread : 1-8 UNC (25.4mm)
  • Length (L) 203.20 mm
    (Equiv. 8 in.)
  • Thread Length (A) 63.50
  • Thread Length (B) 63.50 mm
  • Hardness ASTM A 311 Class B
  • Material Stress Proof Steel to ASTMA311 Class B
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • SUS61
    • SUS-61
    View full details

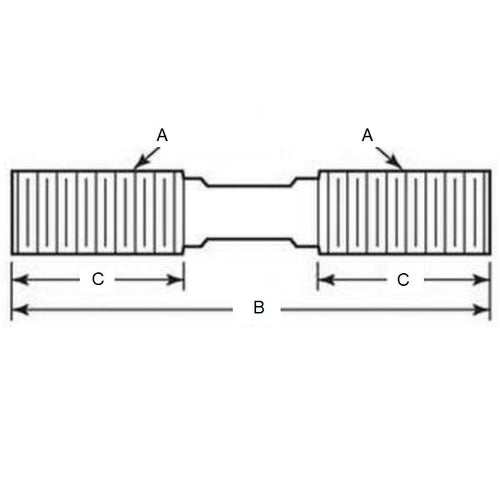

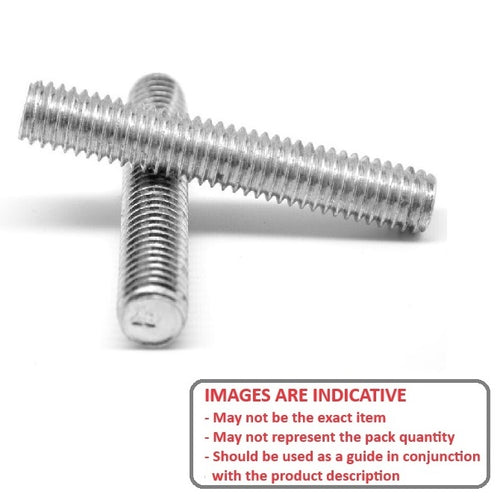

    SUS61RSDiagramSUS61RSImage
