NT019F-HSC-BR - Datasheet
MBA
Category Information

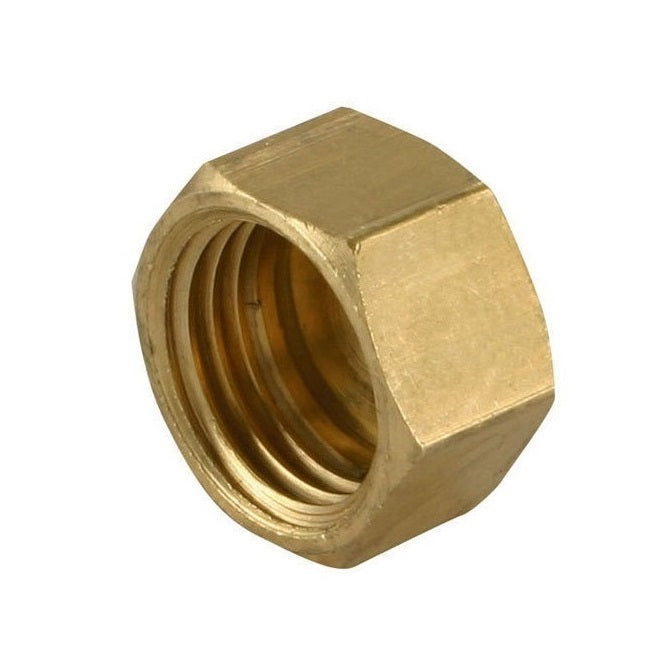

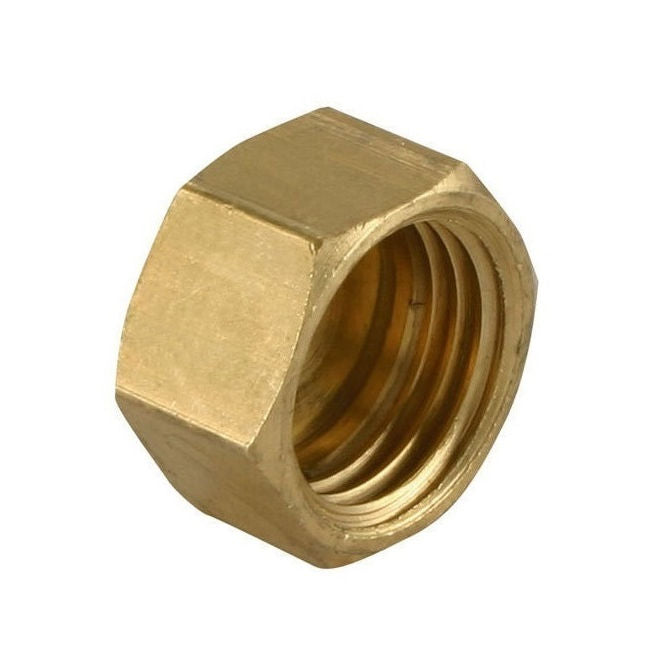

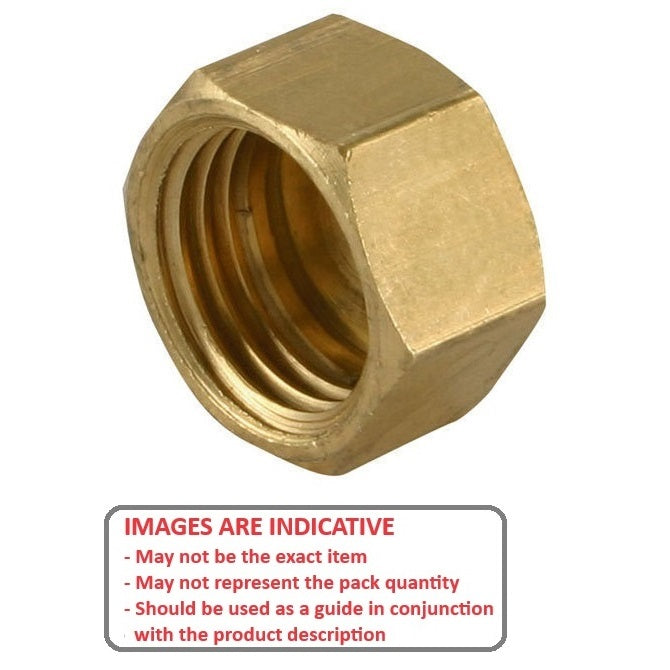

Nuts - Hexagonal - Full - BrassBrass Full Hexagonal Nuts. UNC - UNF - BA - METRIC.
- An expanded range may be available on special order. Please enquire.

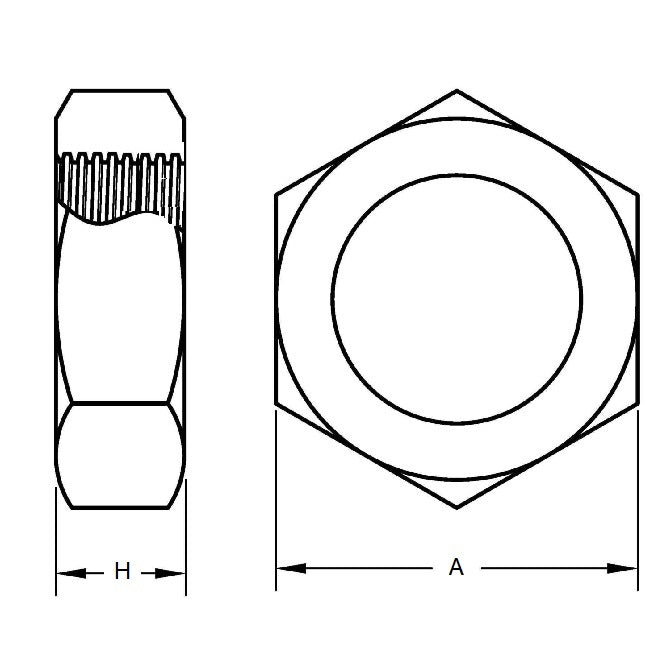

- Note! Thickness (H) and A/F (A) dimensions are usually considered not critical and may vary.
- If the A and H dimensions are critical for your application please consult us prior to ordering.
- Nuts marked as type SCALE have the same dimension across flats as the brass hex head screw of the same thread size.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Thread Size : 1-72 UNF (1.85mm)
- Thickness (H)
1.6
mm
(Equiv. 0.063 in.) - Across Flats (A/F)
2.78
mm
(Equiv. 0.109 in.) - Type Scale Hex Nut
- Pitch 0.353 mm
- Threads Per Inch 72 TPI
- Material Brass
Product Compliance and Data
Additional Resources
Cross References
- MicroFast HNBS0172
