RCL-016-033-Z - Datasheet
MBA
Category Information

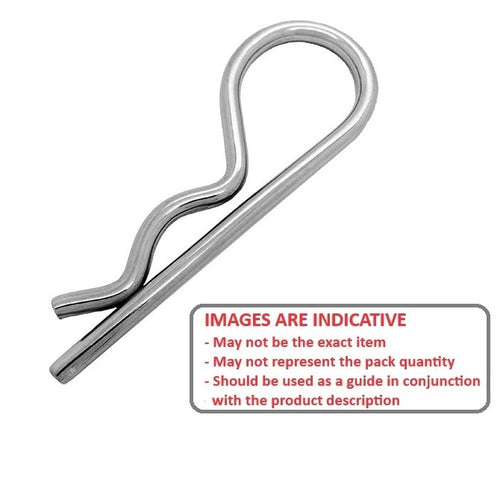

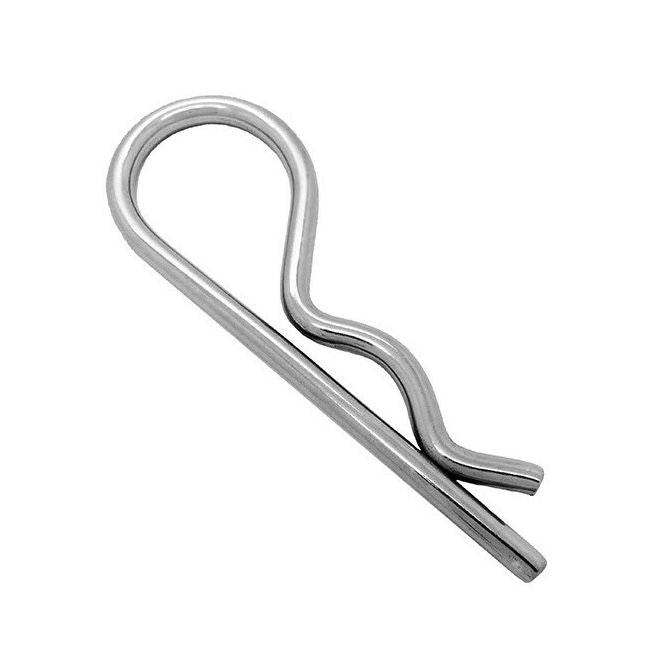

R Clips - Single Coil - SteelSteel Single Coil R Clips. Also known as internal hitch pins, bridge pins or humpback pins
- An expanded range may be available on special order. Please enquire.
- Material: Spring Wire
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

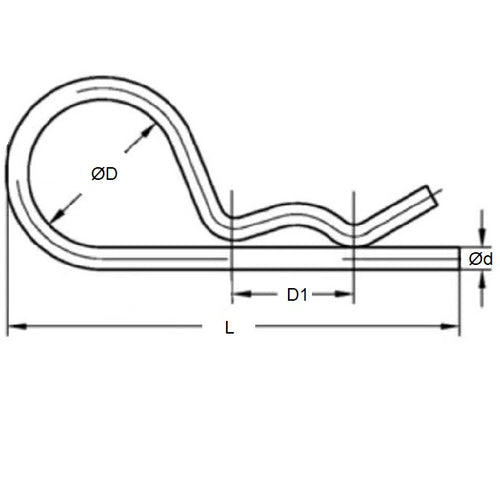

- Wire Thickness (d) : 1.60 mm
- Length (L) 33.0 mm
- Material Spring Wire, Oil-Tempered
- Drill Hole Size 1.98 mm
- Approx.Inside Eye (D) 7.00 to 9.00 mm
- Shaft Size Range 6.35 to 12.70 mm
- Approx. Bridge Length (D1) 10 mm
- Material Spring Wire, Oil-Tempered Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- Hitech MSHPZP16
- A 9Q34-22
- A9Q34-22
- A9Q3422
