KW-015-026-068-C - Datasheet
ExaktKey
Category Information
Keys - Woodruff - PlainPlain Woodruff Keys. Plain carbon steel
- An expanded range may be available on special order. Please enquire.
Product Data

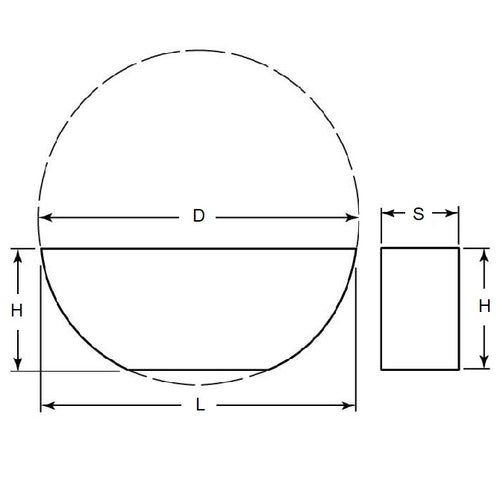

- Thickness (S)
:
1.50
mm
+/- 0.025
(Equiv. 0.059 in.) - Approx. Height (H)
2.6
mm
+/- 0.250
(Equiv. 0.102 in.) - Approx. Length (L) 6.76 mm
- Basis Diameter (D) 7.00 mm
- Finish Plain
- Hardness HRB 80
- Material Carbon Steel C45
Product Compliance and Data
Additional Resources
Cross References
- 98490A110
- NoCor® KU157
- Huyett® WKMC-015026
- NoCor® WKMC015026
- KW015070C
- KU1.5-7
- A9C49M01507
