Miniature Bearings Australia
RP015-0060-4 - Datasheet
MBA
Category Information
Pins - Roll - Stainless Steel - 300 Grade300 Grade Stainless Steel Roll Pins. 300 Grade Stainless DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data

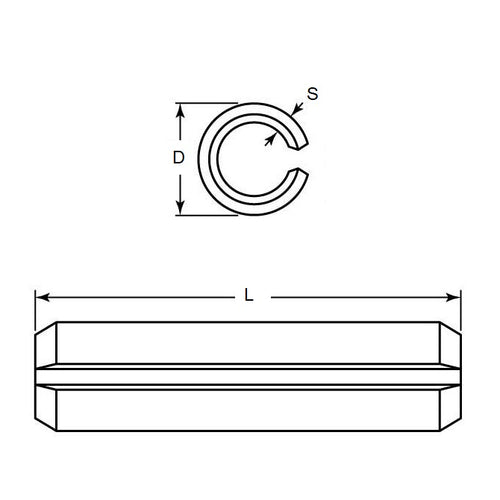

- Nominal Diameter (D) : 1.50 mm
- Length (L) 6.00 mm
- Free Diameter 1.65 mm
- Thickness (S) 0.35 mm
- Chamfer Length (cL) 0.15-0.70 mm
- Chamfer Diameter (cD) 1.4 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Stainless Steel 304 (Similar to A2 or 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- 91610A108
- NoCor® SPMS-015-006-304SS
- SRP156
- SRP1.5-6
- SPMS015006304SS
