KW-016-034-077-C - Datasheet

ExaktKey

Category Information

Keys - Woodruff - Plain

Plain Woodruff Keys. Plain carbon steel

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Thickness (S) : 1.59 mm +/- 0.025
    (Equiv. 0.063 in.)
  • Approx. Height (H) 3.4 mm +/- 0.250
    (Equiv. 0.134 in.)
  • Approx. Length (L) 7.65 mm
  • Basis Diameter (D) 7.94 mm
  • Finish Plain
  • Hardness HRB 80
  • Material Carbon Steel C45
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • ANSI 202.5
  • 98481A055
  • Key Size 206
  • NoCor® 2025
  • Huyett® WKC-206
  • NoCor® WKC206
  • KW016079C
View full details

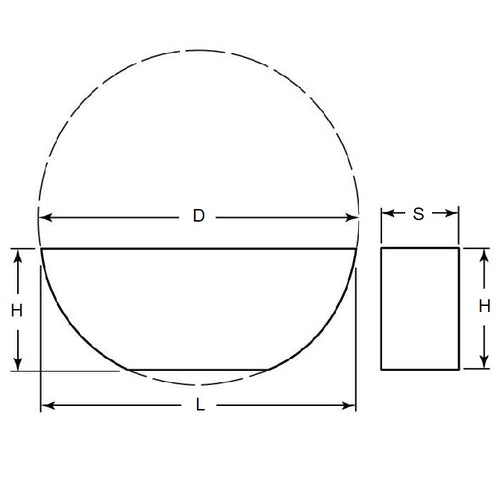

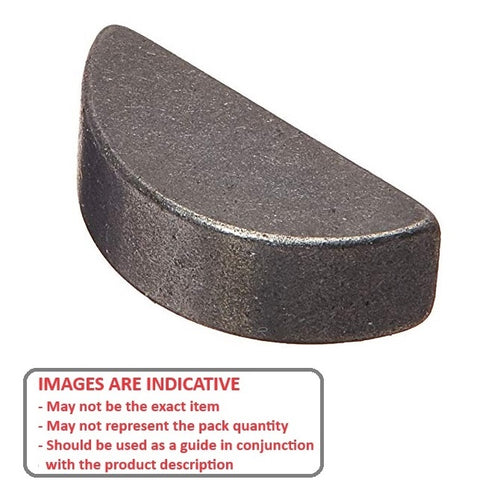

KW-016-034-077-CDiagramKW-016-034-077-CImage
