KW-016-026-061-C - Datasheet
ExaktKey
Category Information

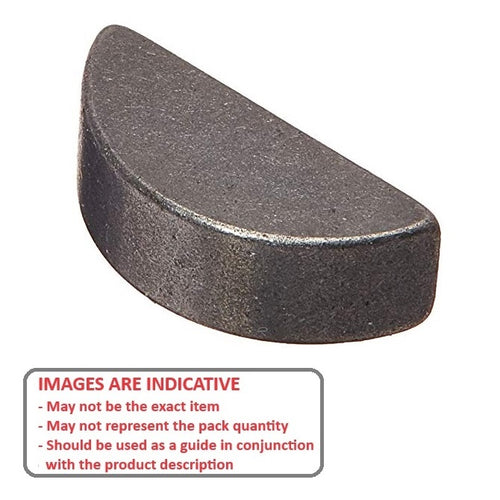

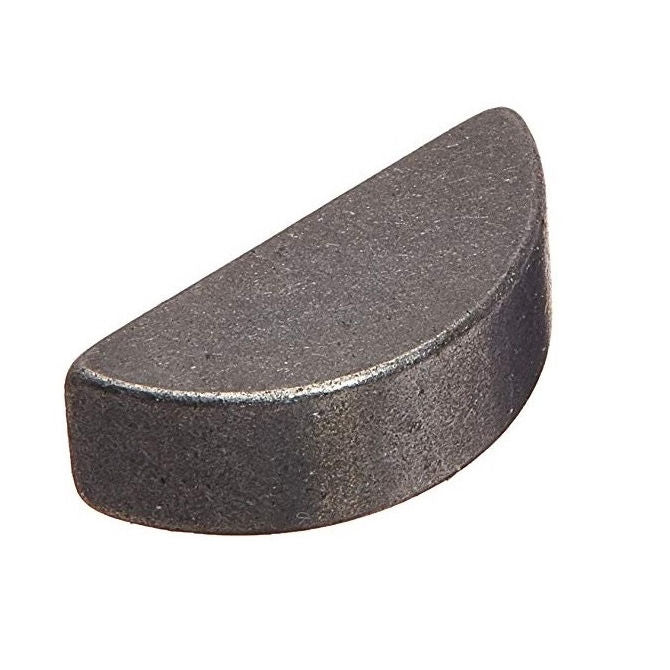

Keys - Woodruff - PlainPlain Woodruff Keys. Plain carbon steel
- An expanded range may be available on special order. Please enquire.
Product Data

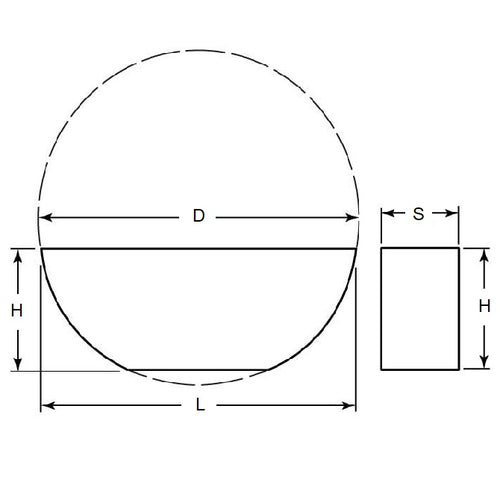

- Thickness (S)
:
1.59
mm
+/- 0.025
(Equiv. 0.063 in.) - Approx. Height (H)
2.6
mm
+/- 0.250
(Equiv. 0.102 in.) - Approx. Length (L) 6.05 mm
- Basis Diameter (D) 6.35 mm
- Finish Plain
- Hardness HRB 80
- Material Carbon Steel C45
Product Compliance and Data
Additional Resources
Cross References
- ANSI 202
- 98481A050
- Key Size 201
- NoCor® 202
- Huyett® WKC-201
- NoCor® WKC201
- KW016064C
