Miniature Bearings Australia
KW-016-026-061-S3 - Datasheet
ExaktKey
Category Information
Keys - Woodruff - 303 Stainless Steel303 Stainless Steel Woodruff Keys. This is the main category in this series
- An expanded range may be available on special order. Please enquire.

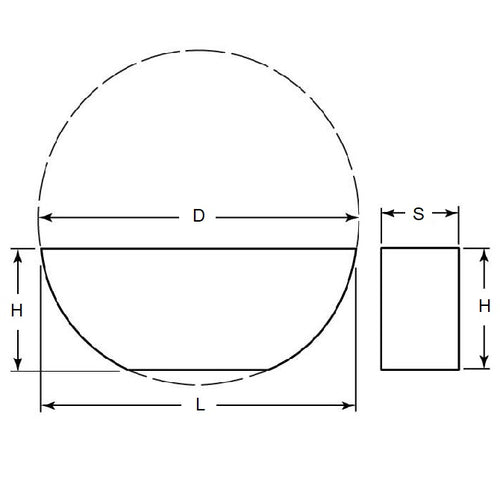

Product Data
- Thickness (S)
:
1.59
mm
+/- 0.025
(Equiv. 0.063 in.) - Approx. Height (H)
2.6
mm
+/- 0.250
(Equiv. 0.102 in.) - Approx. Length (L) 6.05 mm
- Basis Diameter (D) 6.35 mm
- Material Stainless Steel 303 (Similar to A2 or 304 or 18-8)
Product Compliance and Data
Additional Resources
Cross References
- NoCor® 202SS
- ANSI 202-SS
- NoCor® A9X490208
- Key Size 201 Stainless
- Huyett® WKS-201
- NoCor® WKS201
- KW016064S3
- A9X49-0208
