EB-105RS - Datasheet
MBA
Category Information

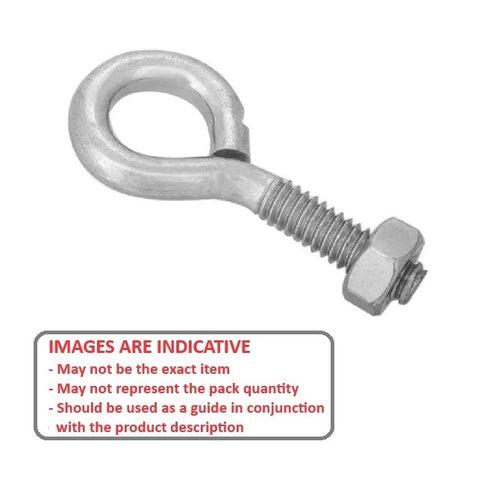

Eye Bolts - Bent - Stainless SteelStainless Steel Bent Eye Bolts. Not recommended for lifting. 304 stainless steel.
- Fastener with a loop or eye at one end, and a threaded shank on the other.
- Used to attach ropes or cables to secure objects by screwing the threaded end into a structure, with the loop providing an anchor point.
- Complete with nut.
- Rolled threads.

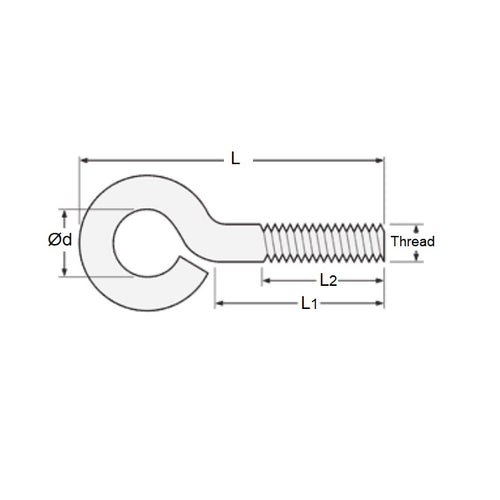

Product Data
- Thread : 1/4-20 UNC (6.35mm)
- Overall Length
53.975
mm
(Equiv. 2.125 in.) - Shank Length
22.225
mm
(Equiv. 0.875 in.) - Thread Length 6.350 mm
- Eye Inside Diameter 6.350 mm
- Material Stainless Steel
