Miniature Bearings Australia
BEB-400RS - Datasheet
MBA
Category Information

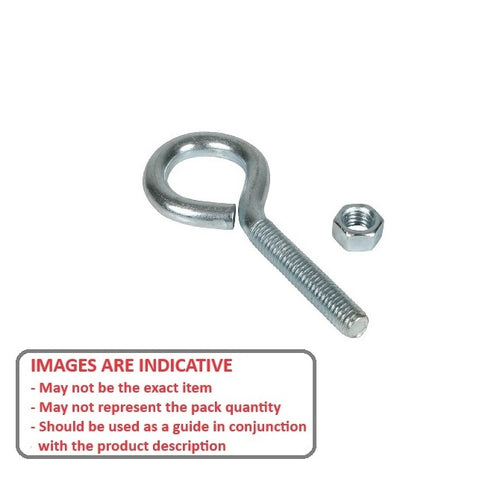

Eye Bolts - Bent - SteelSteel Bent Eye Bolts. Not recommended for lifting.
- Fastener with a loop or eye at one end, and a threaded shank on the other.
- Used to attach ropes or cables to secure objects by screwing the threaded end into a structure, with the loop providing an anchor point.
- Carbon steel zinc plated.
- Complete with nut.
- Rolled threads.

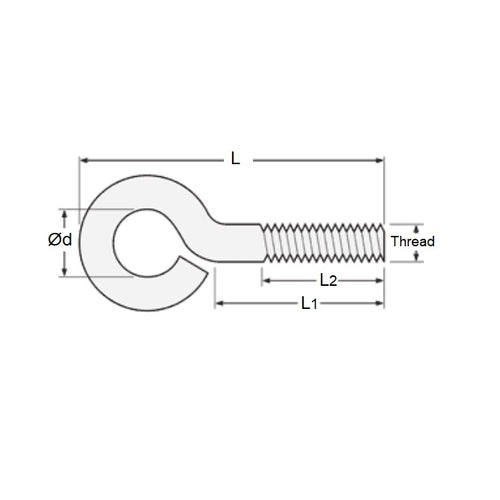

Product Data
- Thread : 1/4-20 UNC (6.35mm)
- Overall Length
50.800
mm
(Equiv. 2 in.) - Shank Length
25.400
mm
(Equiv. 1 in.) - Thread Length 22.225 mm
- Eye Inside Diameter 12.700 mm
Product Compliance and Data
Additional Resources
Cross References
- 9489T17
